Raceworks

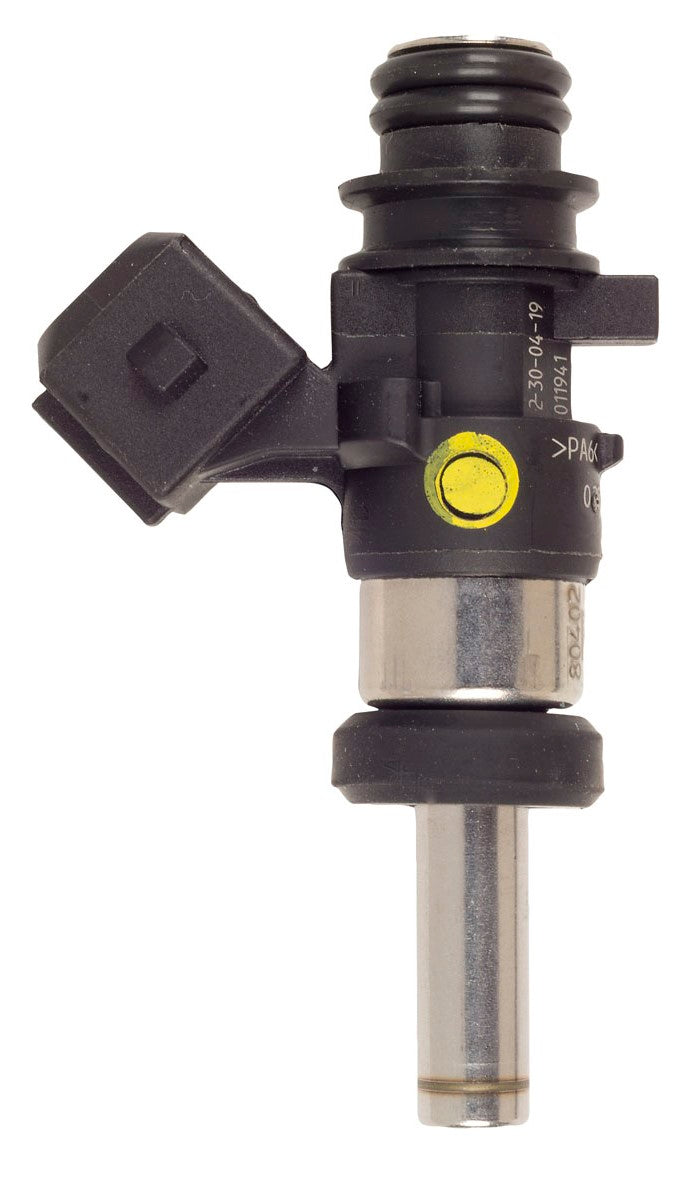

RW 980CC (MODIFIED BOSCH) SHORT W/EXT NOSE 11MM BOSCH CONNECTOR
Quantity:
| Specifications | Part Number |
|---|---|
| Turned down Bosch Injector (Spray Pattern unmodified) Size: 980cc (92 Lb/hr) @ 3bar and 1100cc (105 Lb/hr) @ 4bar Impedance: High (12.0 Ohms) Plug: Bosch Jetronic/Minitimer Modified for 11mm apps (Subaru BRZ & Toyota 86) Spray Pattern: Wide Cone Spray Direction: Straight Flow variance is +3% / -2% (5% total variance)
|
INJ-506-11mm |
Download Injectors Size Charts PDF
*Direct fit applications
Toyota 86
Subaru BRZ
*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. See Injector Upgrade Guide for more details.
FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
| Normally Aspirated Gasoline | 185HP | 140KW |
| Forced Inducted Low Boost Gasoline | 155HP | 115KW |
| Forced Inducted High Boost Gasoline | 165HP | 125KW |
| Normally Aspirated E85 | 140HP | 105KW |
| Forced Inducted Low Boost E85 | 110HP | 80KW |
| Forced Inducted High Boost E85 | 120HP | 90KW |
