Raceworks

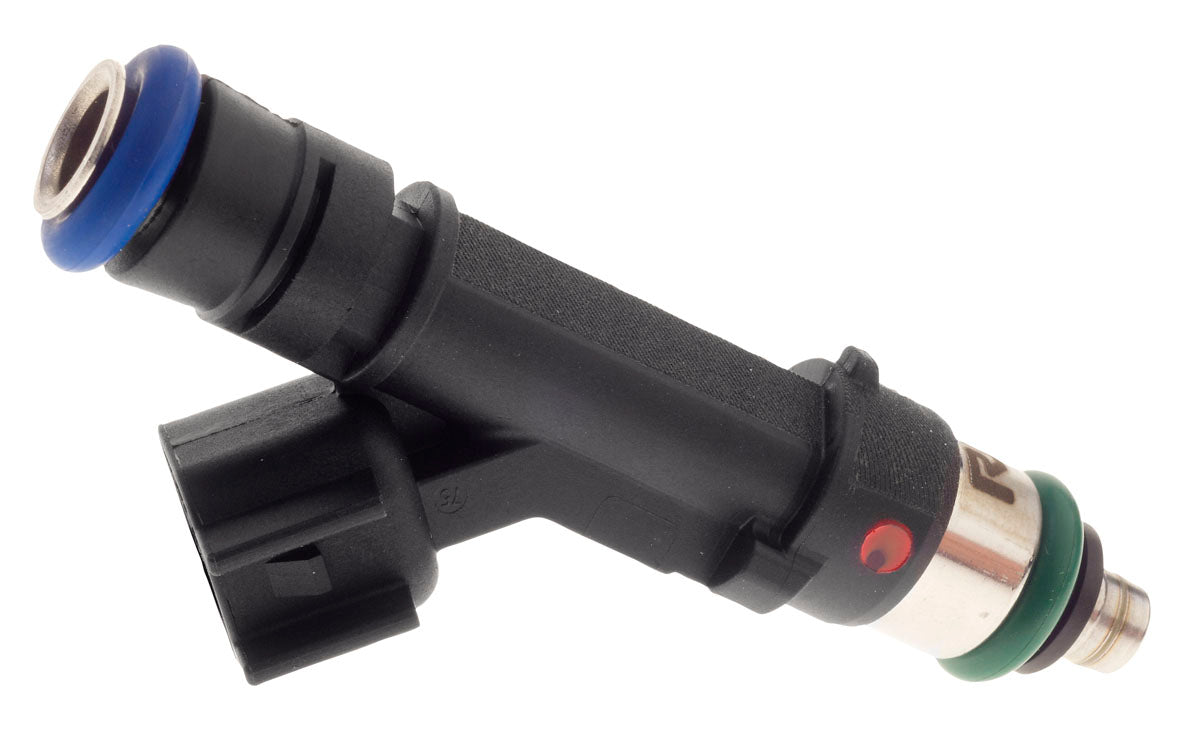

RW 980CC (MODIFIED BOSCH) FULL LENGTH 14MM USCAR CONNECTOR
Quantity:
| Specifications | Part Number |
|---|---|
| Modified/High Flowed Bosch Injector Size: 980cc (95 Lb/hr) @ 3bar and 1150cc (110Lb/hr) @ 4bar. Impedance: High (12Ohms) Plug: USCAR. Top O-Ring: 14mm. Ethanol & Methanol Safe Spray Pattern: Narrow Cone Spray Direction: Straight
Flow variance is +/- 1.5% (3% Total) |
INJ-505 |
Download Injectors Size Charts PDF
*Direct fit applications
Ford Falcon AU V8
Ford Falcon BA/BF 24V V8
Ford Falcon FG-X Supercharged V8
Ford Focus LR/LS/LT/LV Duratec I4
Ford Mustang V8
Mazda MX5 NC
*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. See Injector Upgrade Guide for more details.
FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
| Normally Aspirated Gasoline | 185HP | 140KW |
| Forced Inducted Low Boost Gasoline | 155HP | 115KW |
| Forced Inducted High Boost Gasoline | 165HP | 125KW |
| Normally Aspirated E85 | 140HP | 105KW |
| Forced Inducted Low Boost E85 | 110HP | 80KW |
| Forced Inducted High Boost E85 | 120HP | 90KW |
