Raceworks

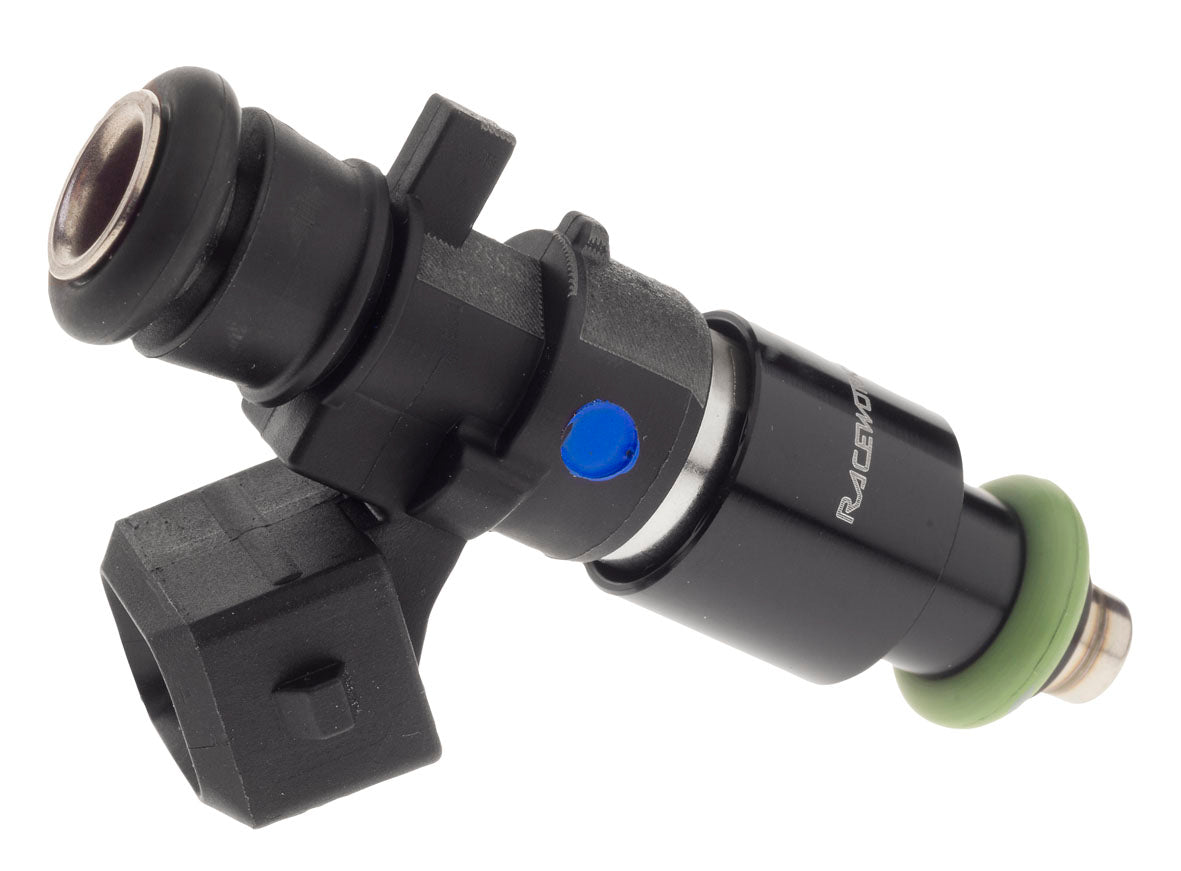

RW 1200CC (MODIFIED BOSCH) 3/4 LENGTH 14MM BOSCH CONNECTOR
Quantity:
| Specifications | Part Number |
|---|---|
| Modified/High Flowed Bosch Injector Size: 1200cc (114 Lb/hr) @ 3bar and 1380cc (131Lb/hr) @ 4bar. Impedance: High (12Ohms) Plug: Bosch. Top O-Ring: 14mm. Ethanol & Methanol Safe Spray Pattern: Narrow Cone Spray Direction: Straight
Flow variance is +/- 1.5% (3% Total) |
INJ-503 |
Download Injectors Size Charts PDF
*Direct fit applications
Ford Falcon FG/FG-X Turbo I6
*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. See Injector Upgrade Guide for more details.
FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
| Normally Aspirated Gasoline | 230HP | 175KW |
| Forced Inducted Low Boost Gasoline | 195HP | 145KW |
| Forced Inducted High Boost Gasoline | 210HP | 155KW |
| Normally Aspirated E85 | 170HP | 125KW |
| Forced Inducted Low Boost E85 | 140HP | 105KW |
| Forced Inducted High Boost E85 | 150HP | 115KW |
