Raceworks

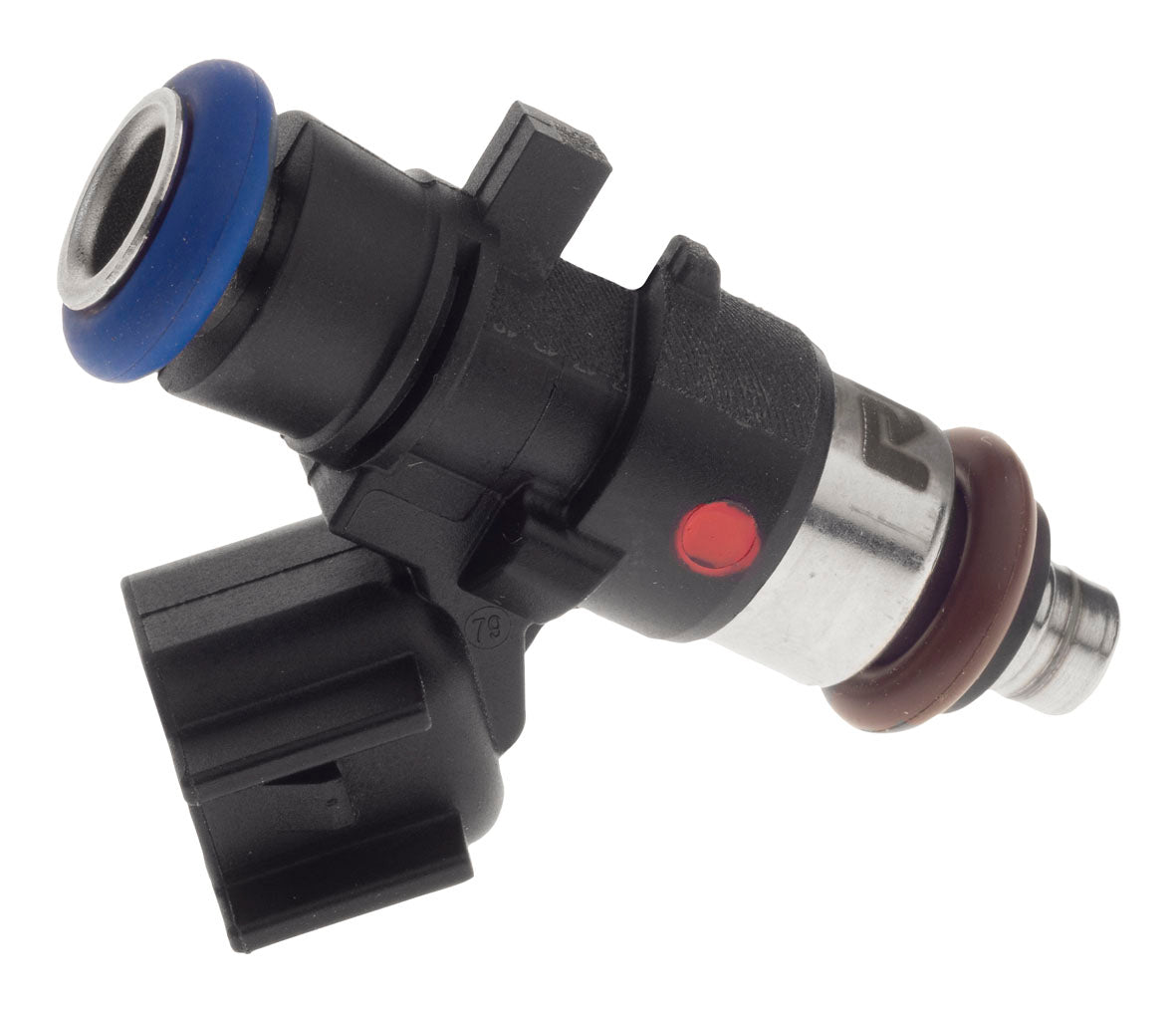

RW 1100CC (MODIFIED BOSCH) SHORT 14MM USCAR CONNECTOR
Quantity:
| Specifications | Part Number |
|---|---|
| Modified/High Flowed Bosch Injector Size: 1100cc ( 105 Lb/hr) @ 3bar and 1300cc (124 Lb/hr) @ 4bar. Impedance: High (12 Ohms) Plug: USCAR. Top O-Ring: 14mm. Bottom O-Ring: 15mm. Ethanol & Methanol Safe Spray Pattern – Narrow Cone Spray Direction – Straight
Flow variance is +/- 1.5% (3% Total) |
INJ-500 |
Download Injectors Size Charts PDF
*Direct fit applications
Holden Commodore VZ 6.0L V8
Holden Commodore VE L76/L77/L98/LS3
Holden Commodore VE LS7
Holden Commodore VF V8
*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. See Injector Upgrade Guide for more details.
FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
| Normally Aspirated Gasoline | 220HP | 165KW |
| Forced Inducted Low Boost Gasoline | 180HP | 135KW |
| Forced Inducted High Boost Gasoline | 195HP | 145KW |
| Normally Aspirated E85 | 165HP | 125KW |
| Forced Inducted Low Boost E85 | 130HP | 95KW |
| Forced Inducted High Boost E85 | 140HP | 105KW |
