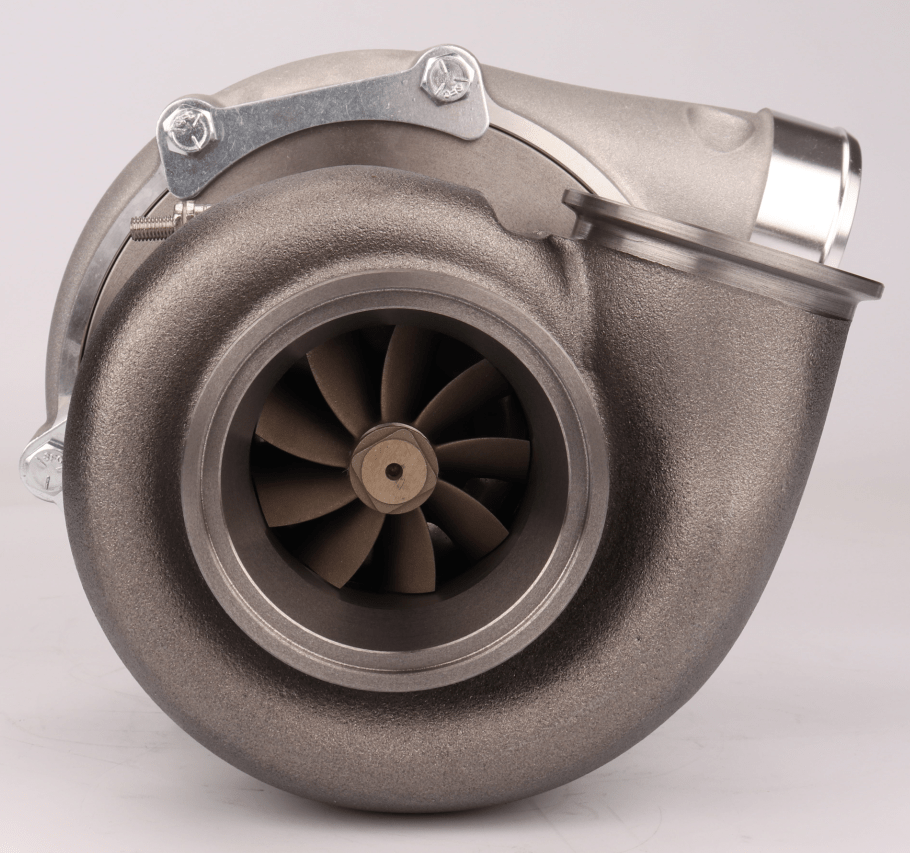

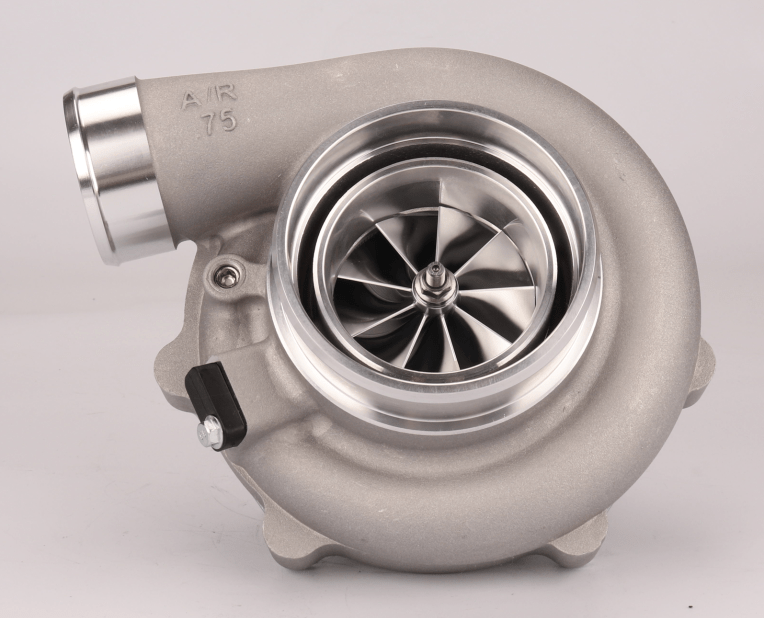

Pulsar Turbo Systems
Reverse Roatation G35-900 Set
Compressor Housing:Standard
Quantity:
A Pair of Pulsar G35-900 Turbos (One Reverse, One Normal Rotation)
Compressor Wheel: 62*76mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4” Hose
Compressor Outlet: 2.5” V-Band
Turbine Inlet: T3/T4
Turbine Outlet: 3” V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
Turbine husing: Dual vband 1.01A/R
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
9 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
