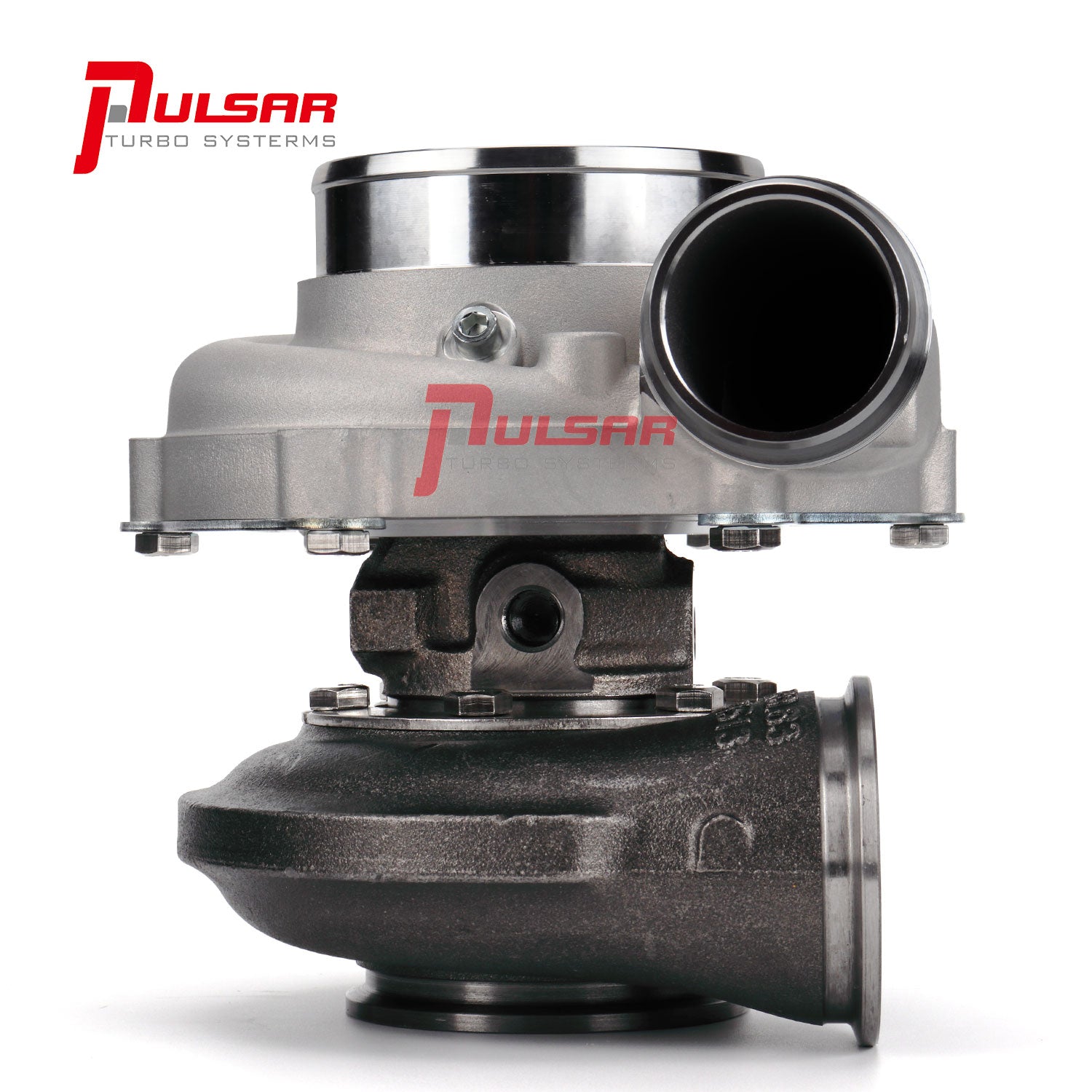

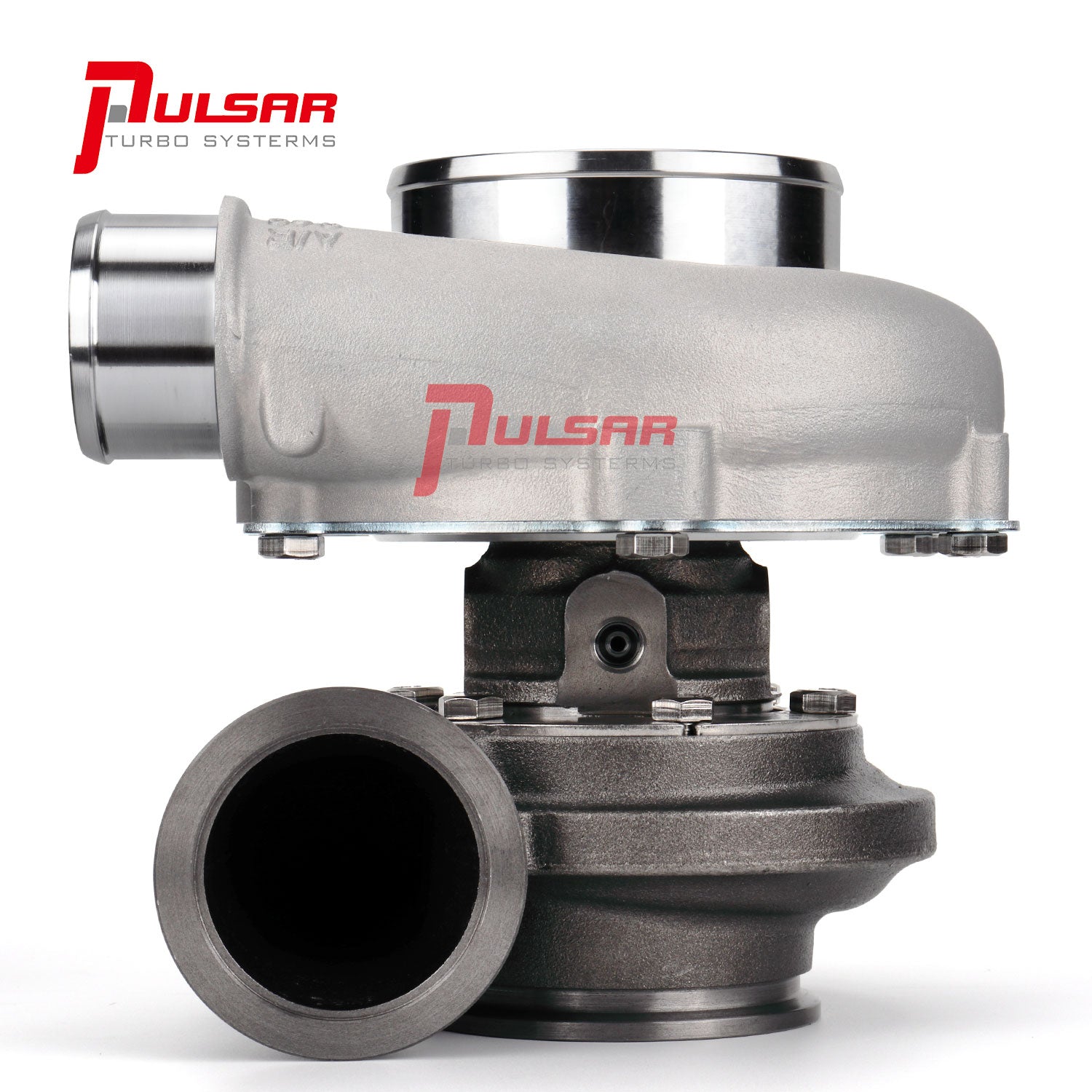

PULSAR Turbo GTX3076R GEN2 Turbocharger
Compressor Housing:Standard
Turbine Housing:T3 .63 V-Band
Quantity:
Dual Ceramic Ball Bearing System

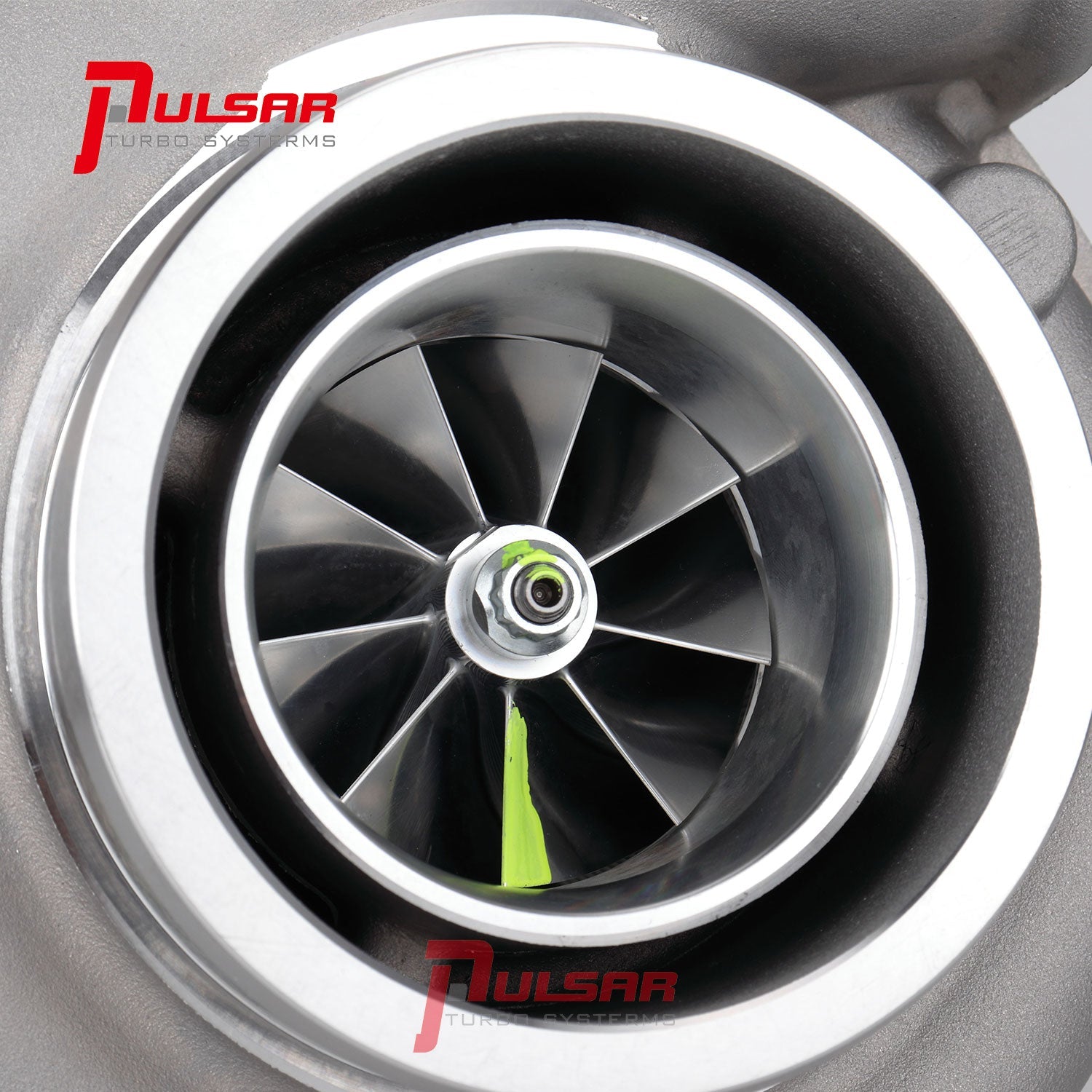

9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

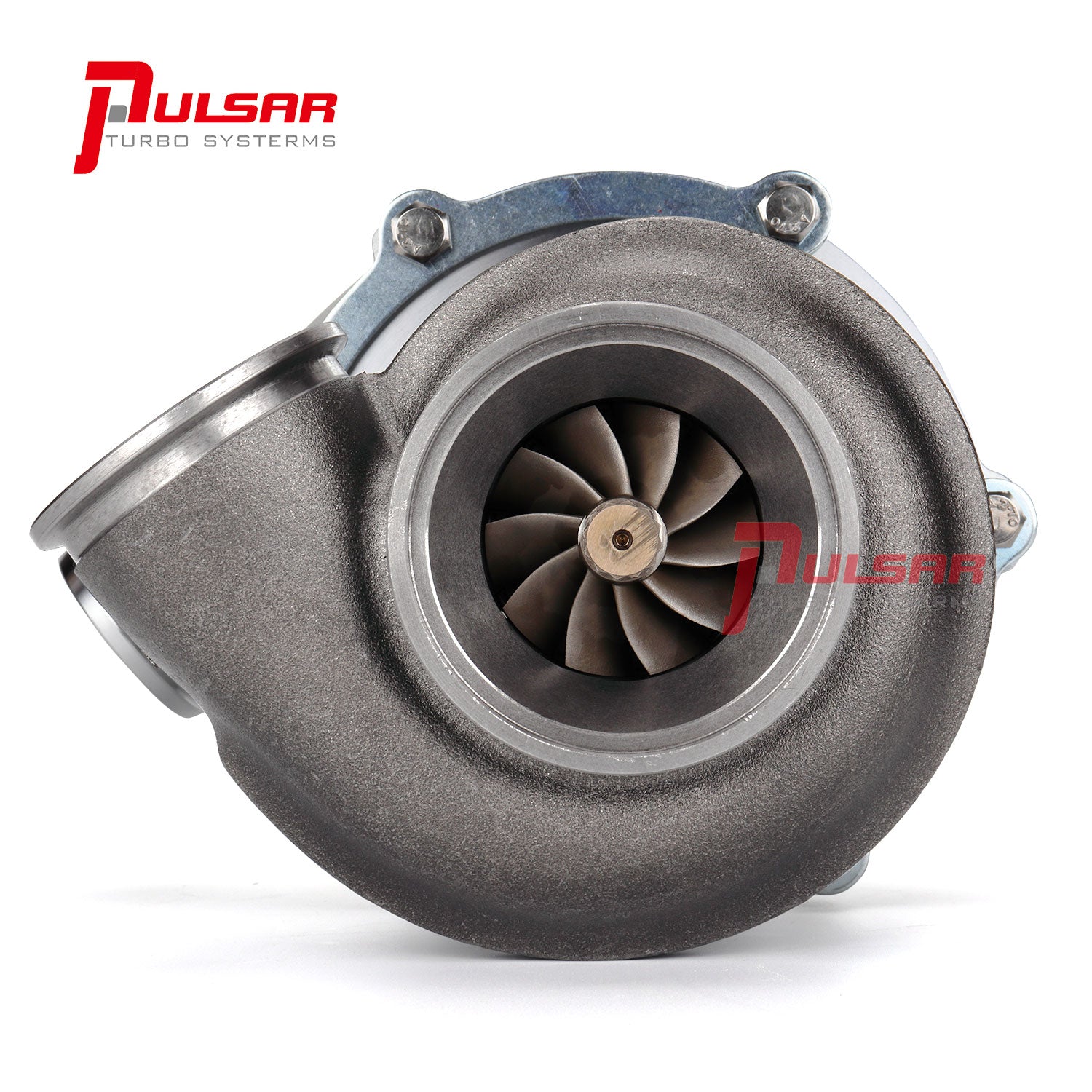

Inconel 713c 10 Blade Turbine Wheel

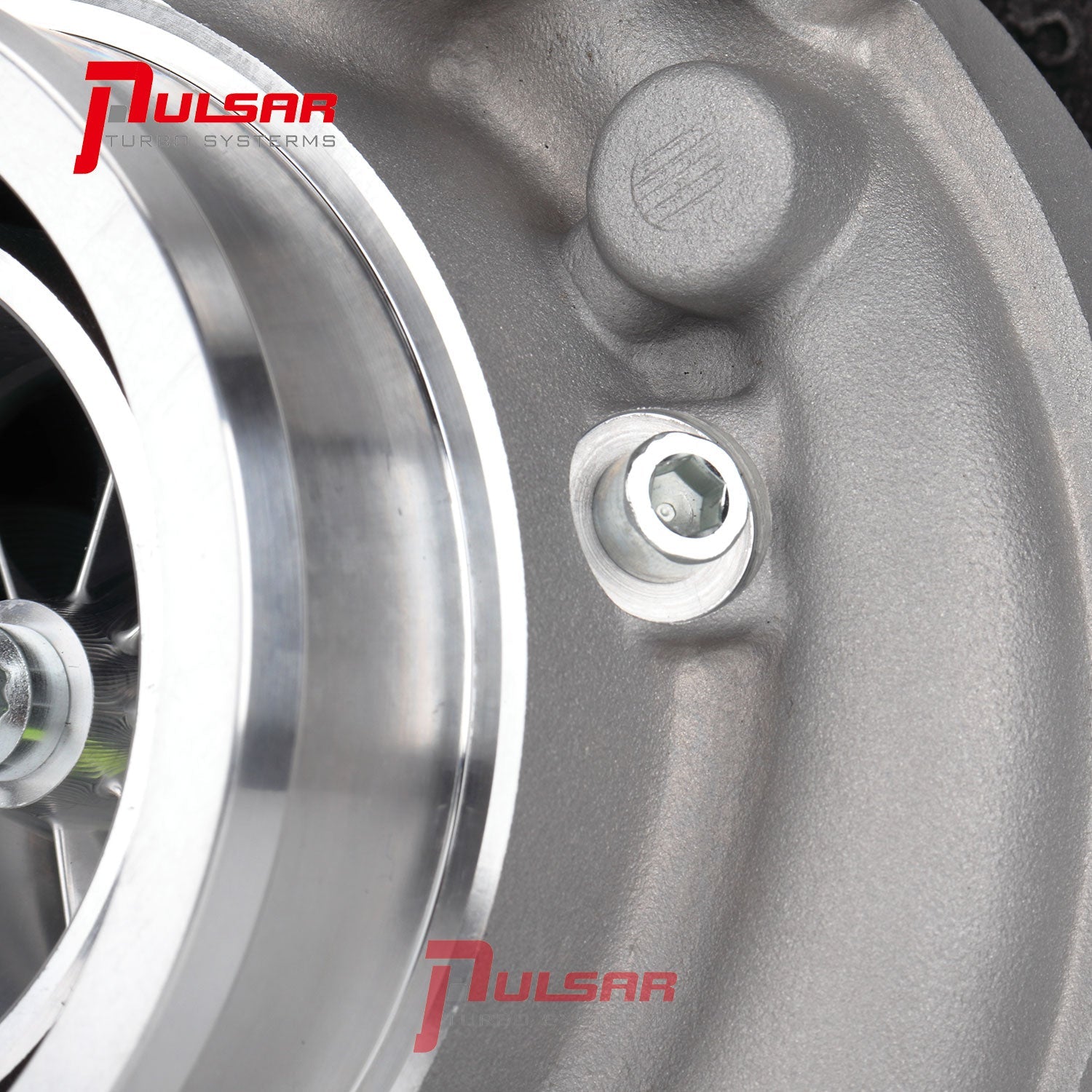

Gen2 Cover Integrated with the Speed Sensor Port
0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option

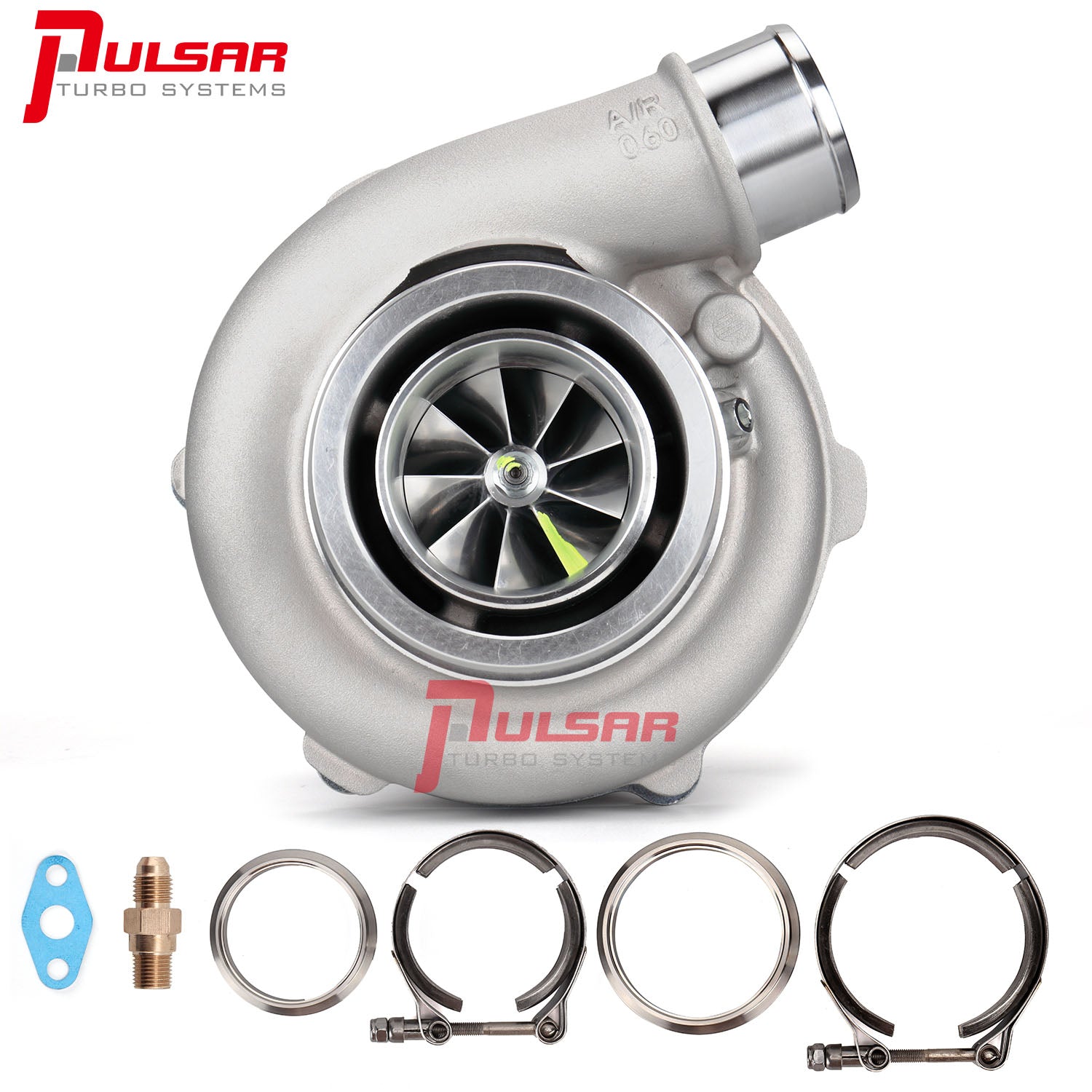

V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
Description
Compressor Wheel: 58*76mm
Turbine Wheel: 60*55mm
Compressor Inlet: 4? Hose

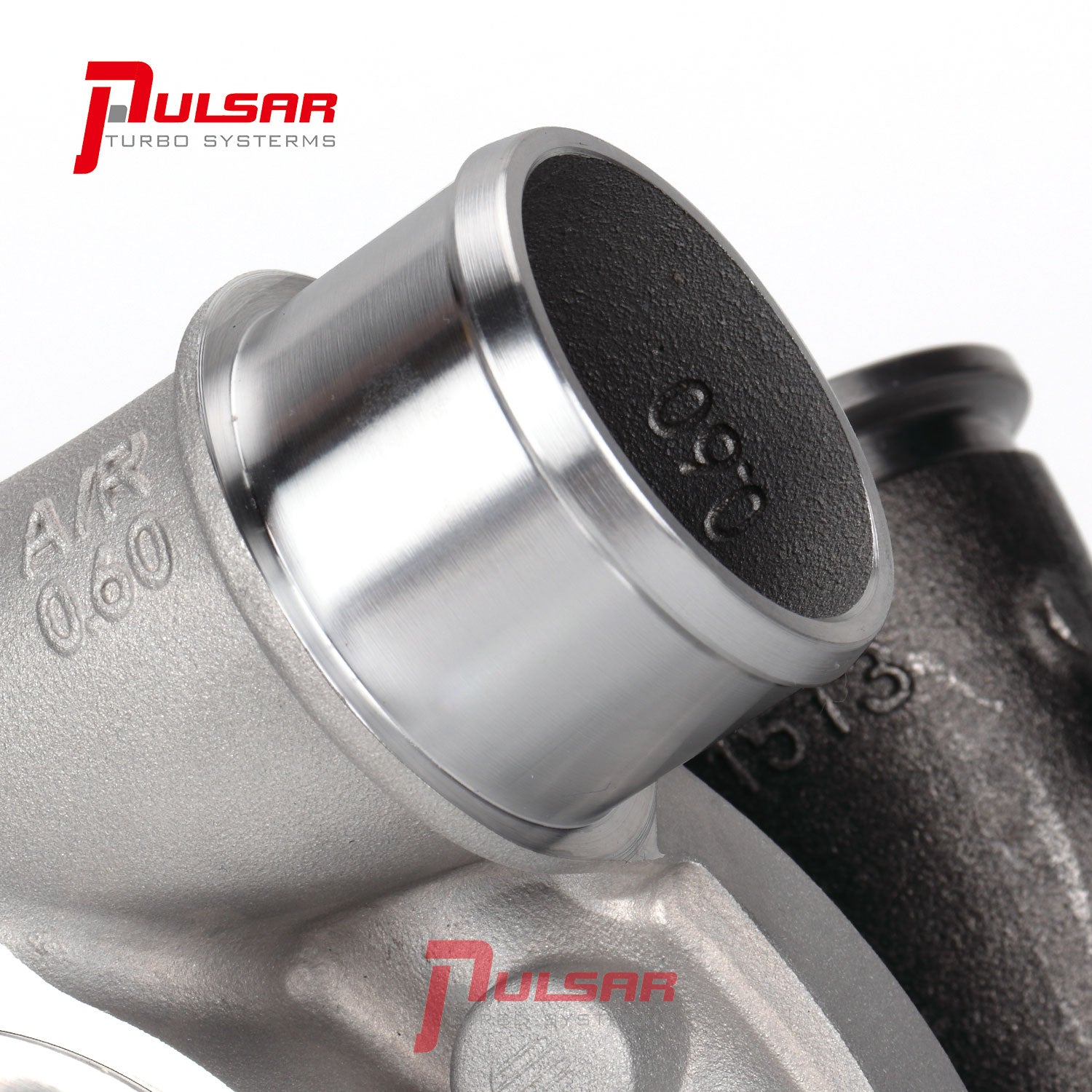

Compressor Outlet: 2? Hose

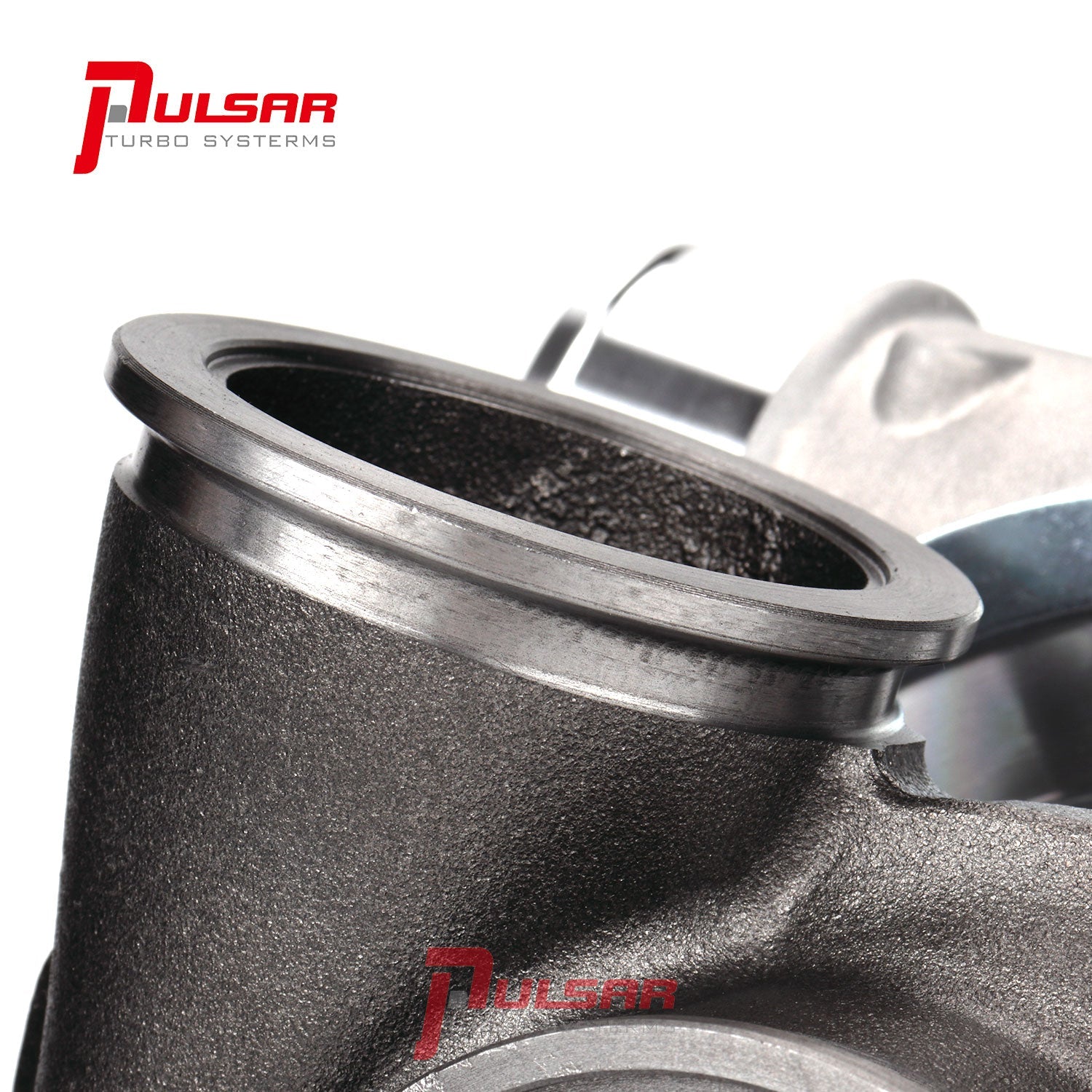

Turbine Inlet: T3, T4 or 2? V-Band
Turbine Outlet: 3? V-Band(3.55?OD)
Oil Feed: -4 AN connect to the Oil Restrictor

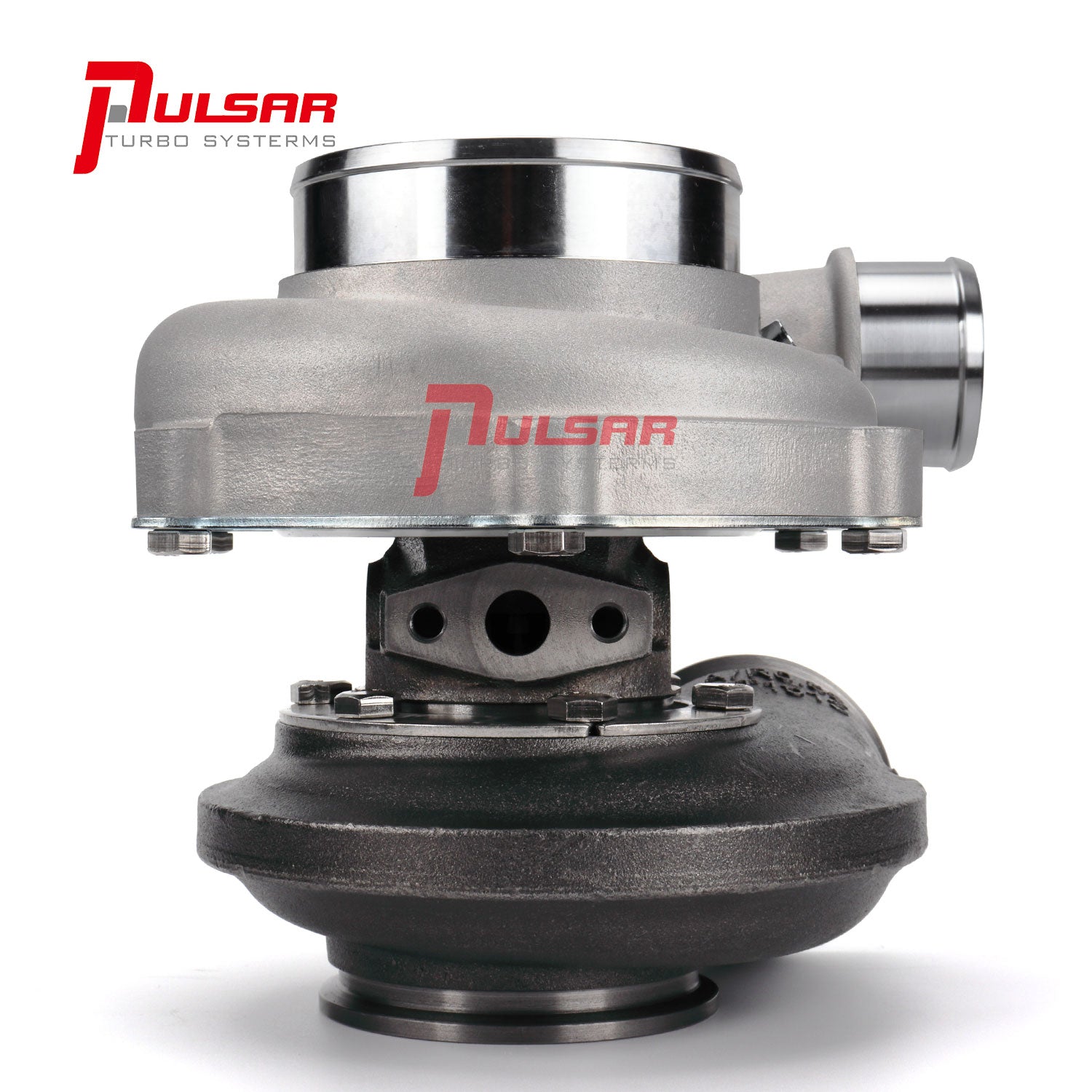

Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
