Pulsar Turbo Systems

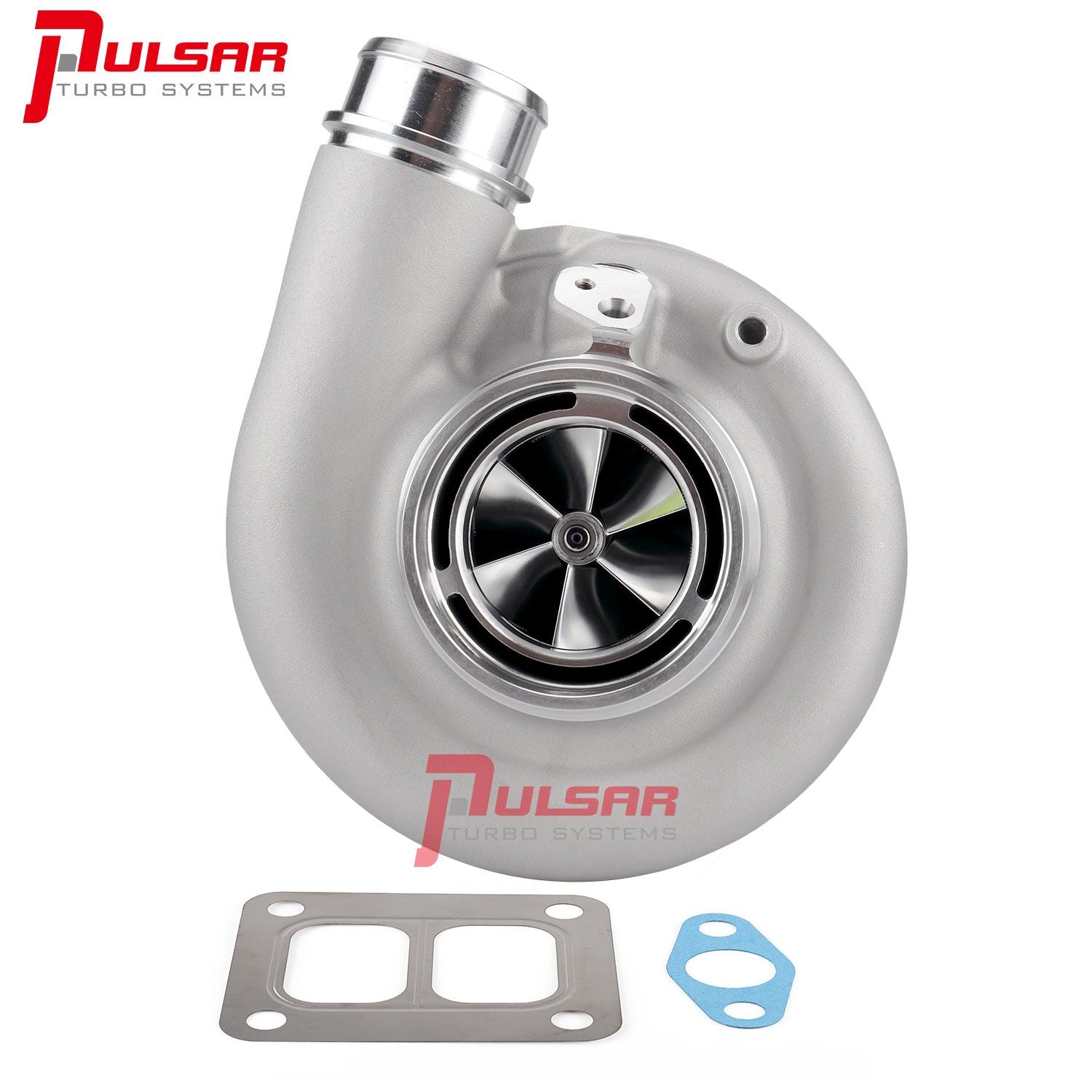

PULSAR NEXT GEN Billet S369 69/80 DUAL CERAMIC BALL BEARING Turbo
Compressor Housing:Standard
Turbine Housing:0.91 T4 Divided
Quantity:
Dual Ceramic Ball Bearing Systems
6+6 Blade 69*91mm Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 80*73mm Turbine Wheel
G2 compressor cover with ported-shroud inlet and integrated with the speed sensor port
Max Flow Rate: 100+ lb/min, rated @ 950FWHP
Description
Bearing Systems:? Dual Ceramic Ball Bearing
Compressor Wheel: 69*94mm
Turbine Wheel: 80*73mm
Compressor Inlet: 4.0 Hose
Compressor Outlet: 2.5 Hose
Turbine Inlet: T4 Divided
Turbine Outlet: 4.21? Marmon
Oil Feed: 1/4? NPT
Oil Drain: Std T4 Flange
