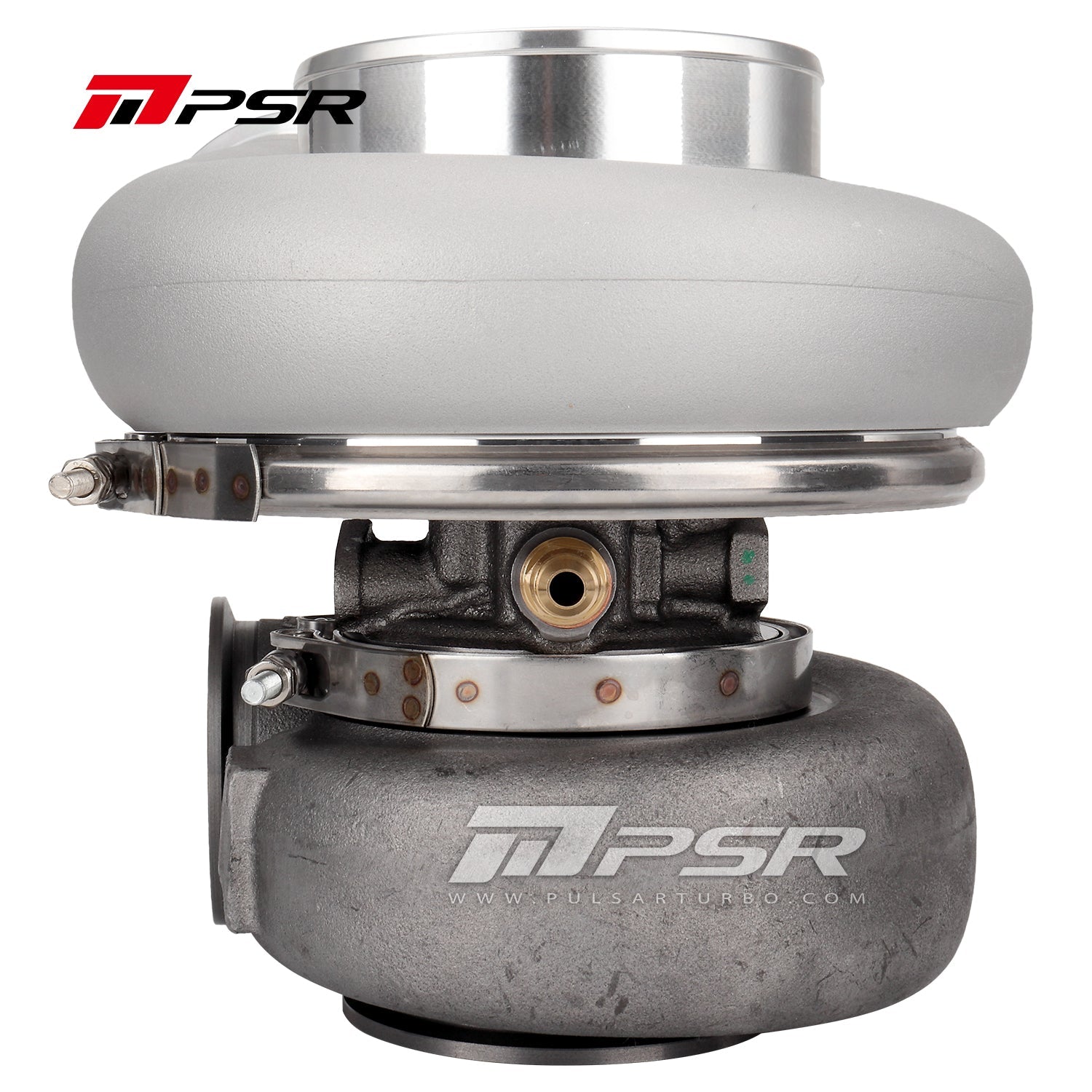

PULSAR G42-1450 Dual Ball Bearing Turbo
Compressor Housing:Standard
Turbine Housing:1.15 A/R Dual V-Band
Quantity:
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

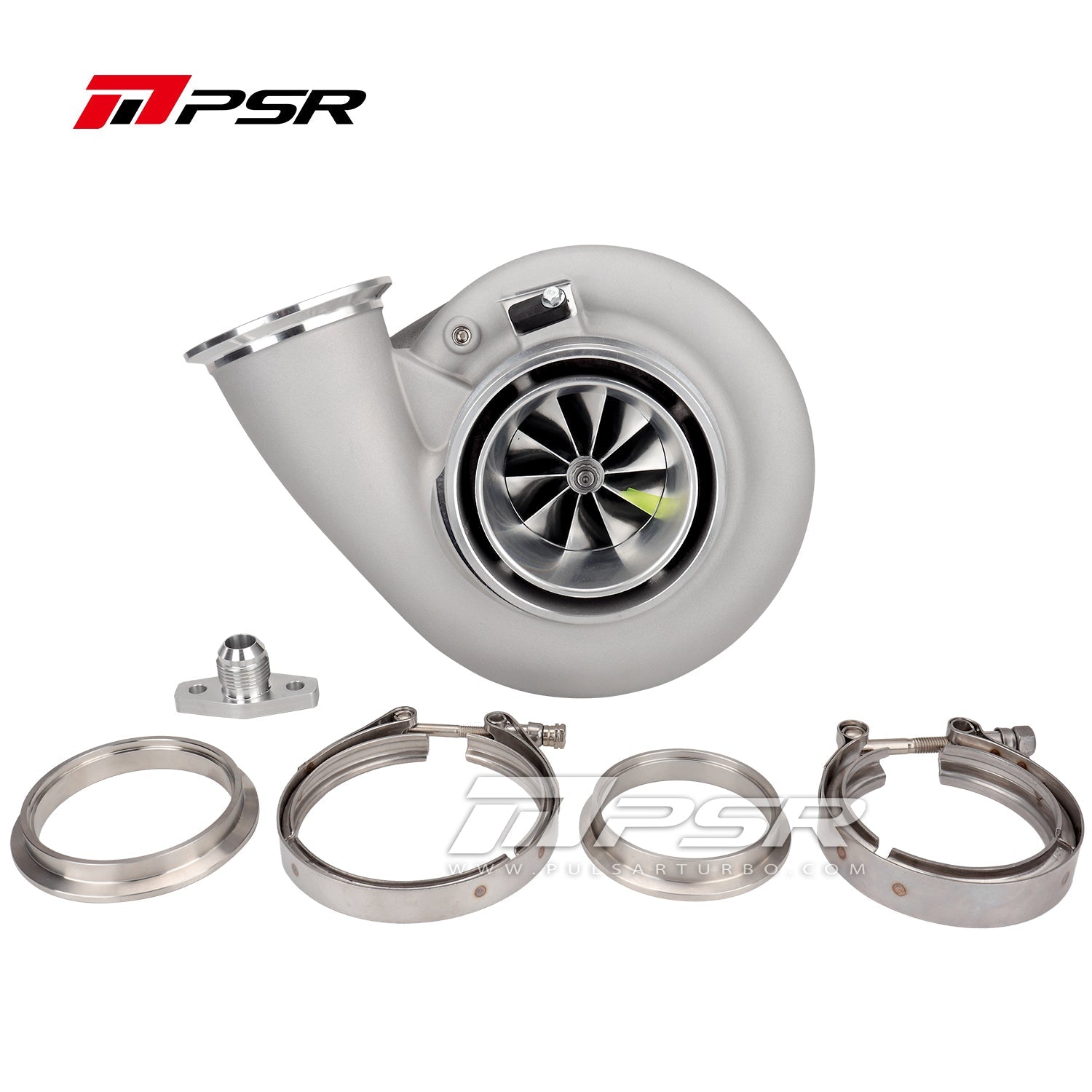

9 Blade G-Aero billet compressor wheel with extended tapered tip technology

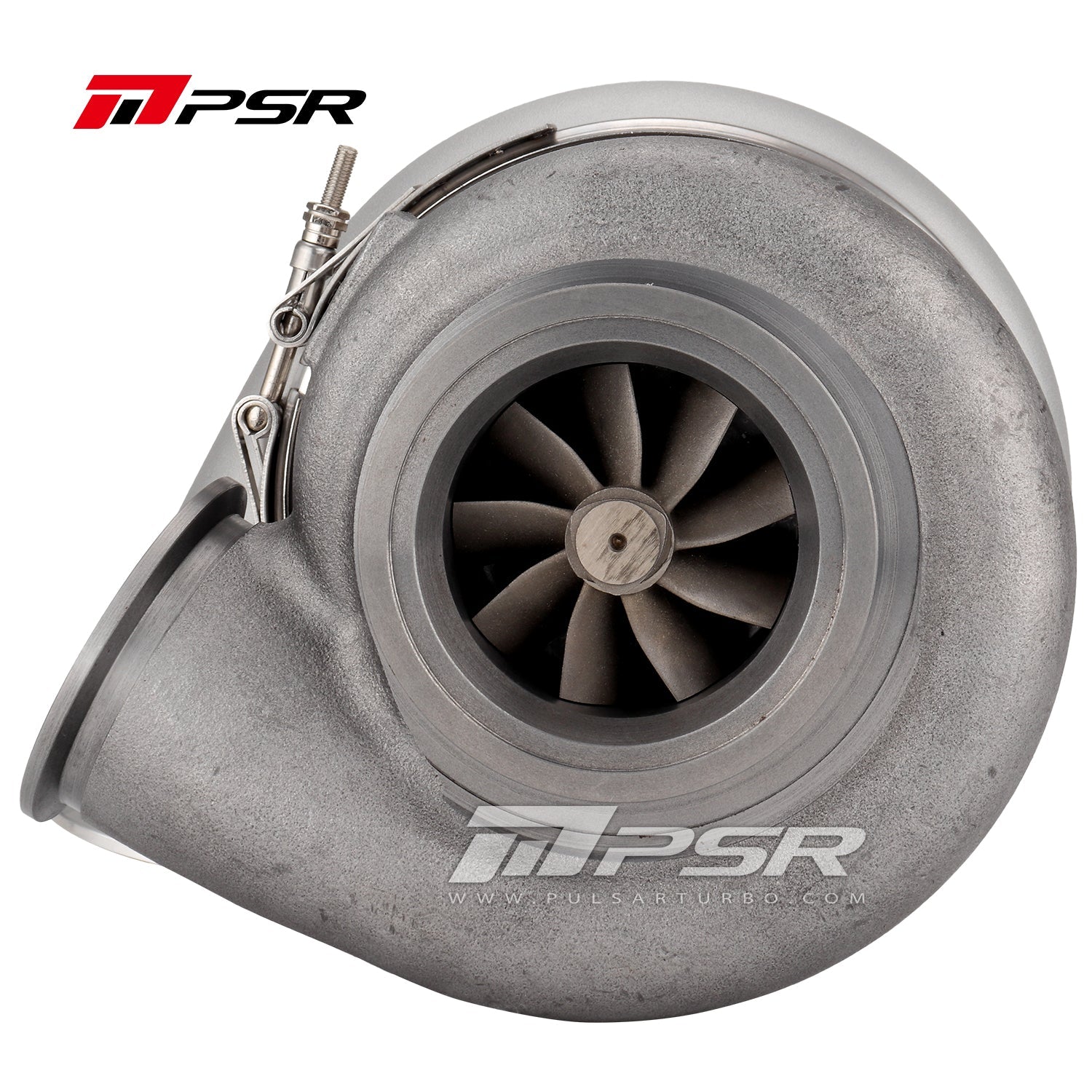

9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
Compressor Wheel: 79*98mm
Turbine Wheel: 82*75mm
Compressor Inlet: 5? Hose
Compressor Outlet: 3? V-Band
Turbine Inlet: 3? V-Band
Turbine Outlet: 3.5? V-Band
Water Ports: -6AN
Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

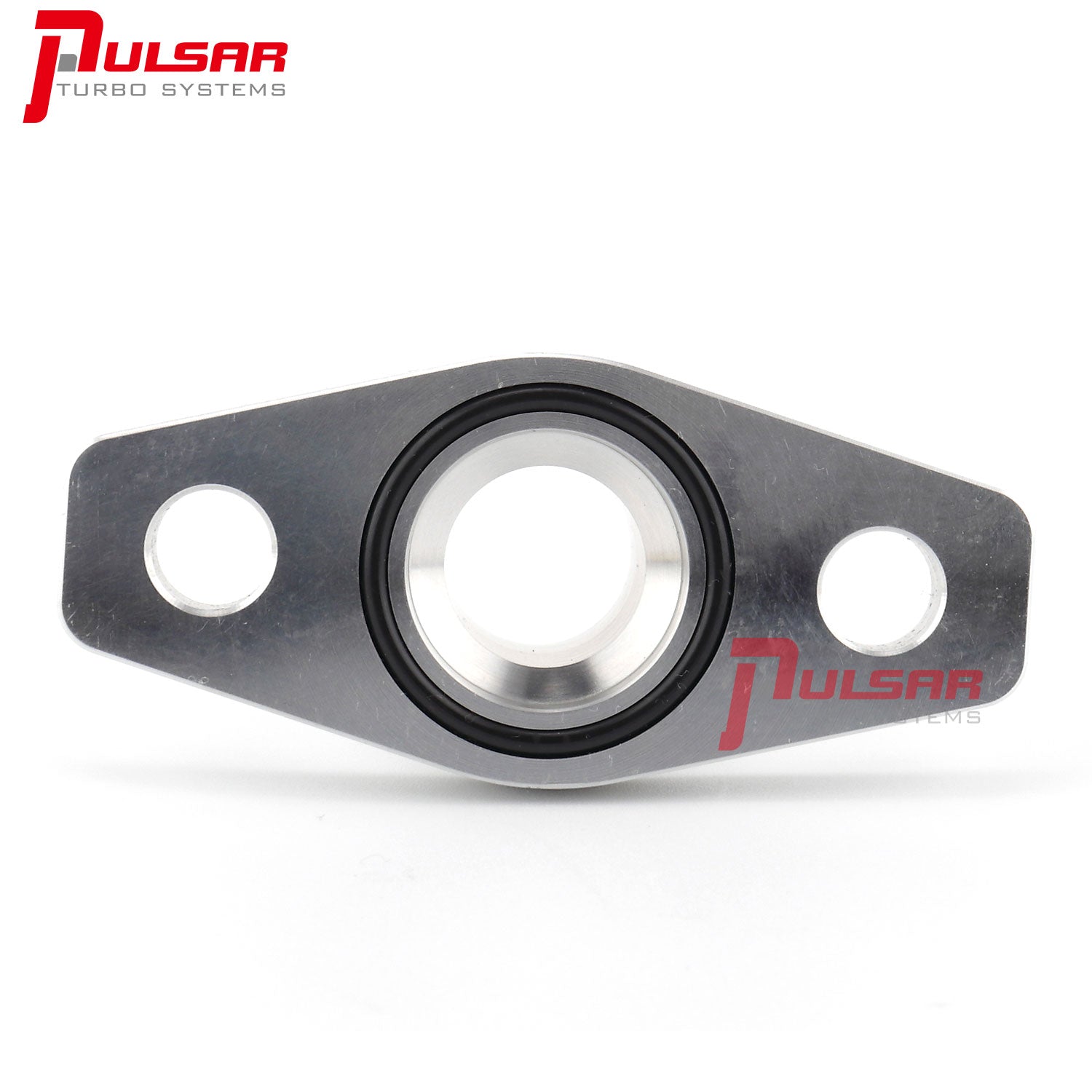

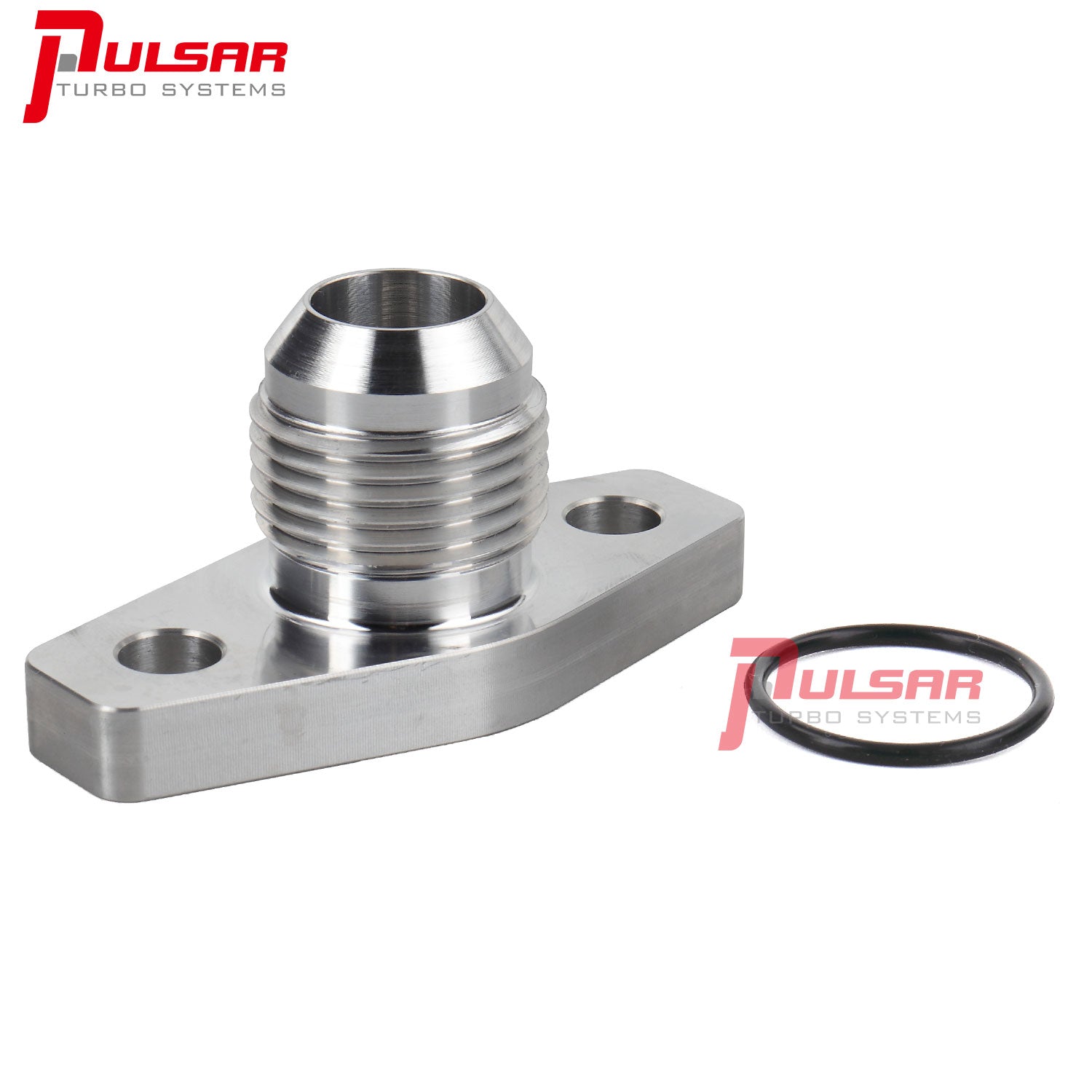

Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
T4 1.15 A/R housing is with an open style inlet, T4 1.28 A/R housing is with a twin-scroll inlet.
