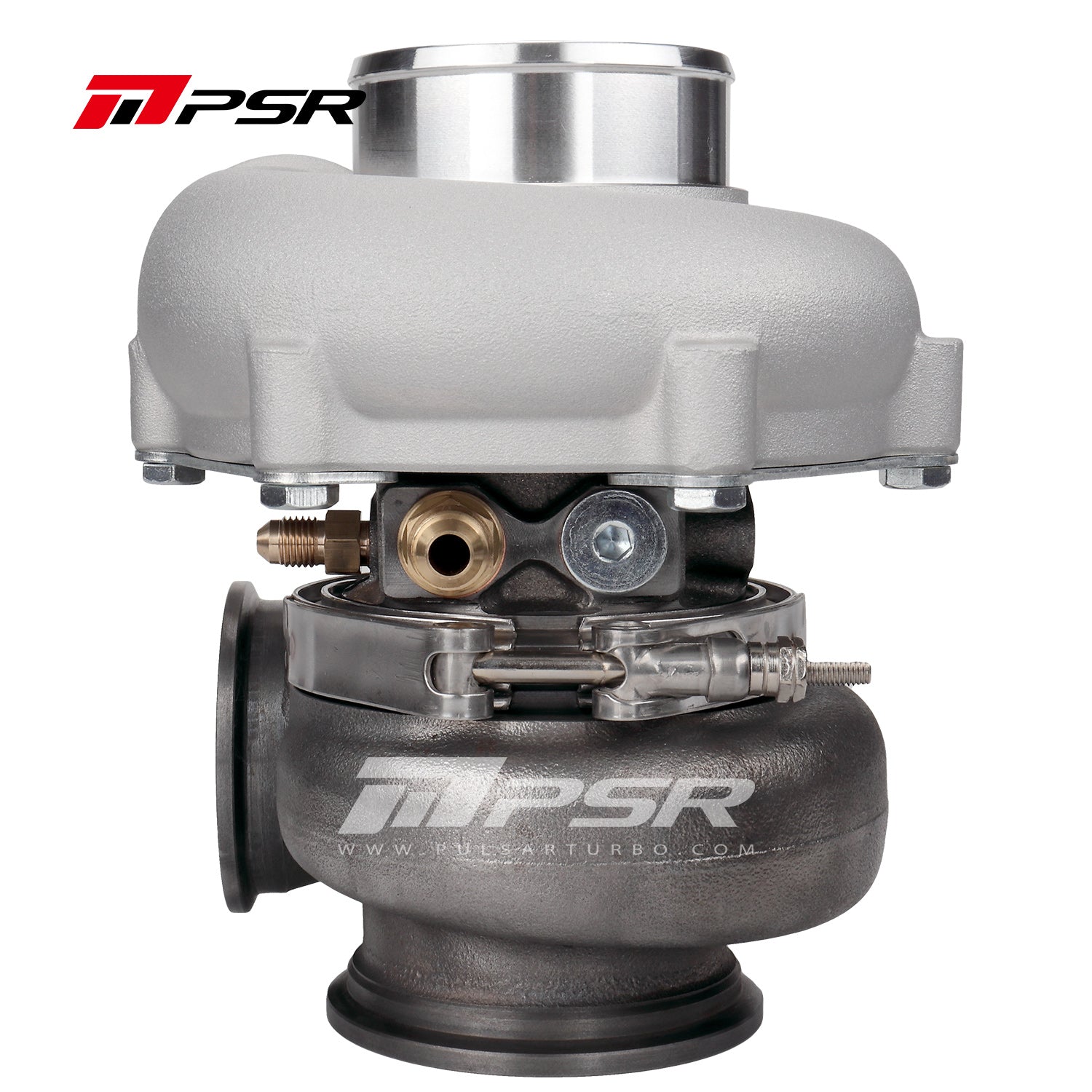

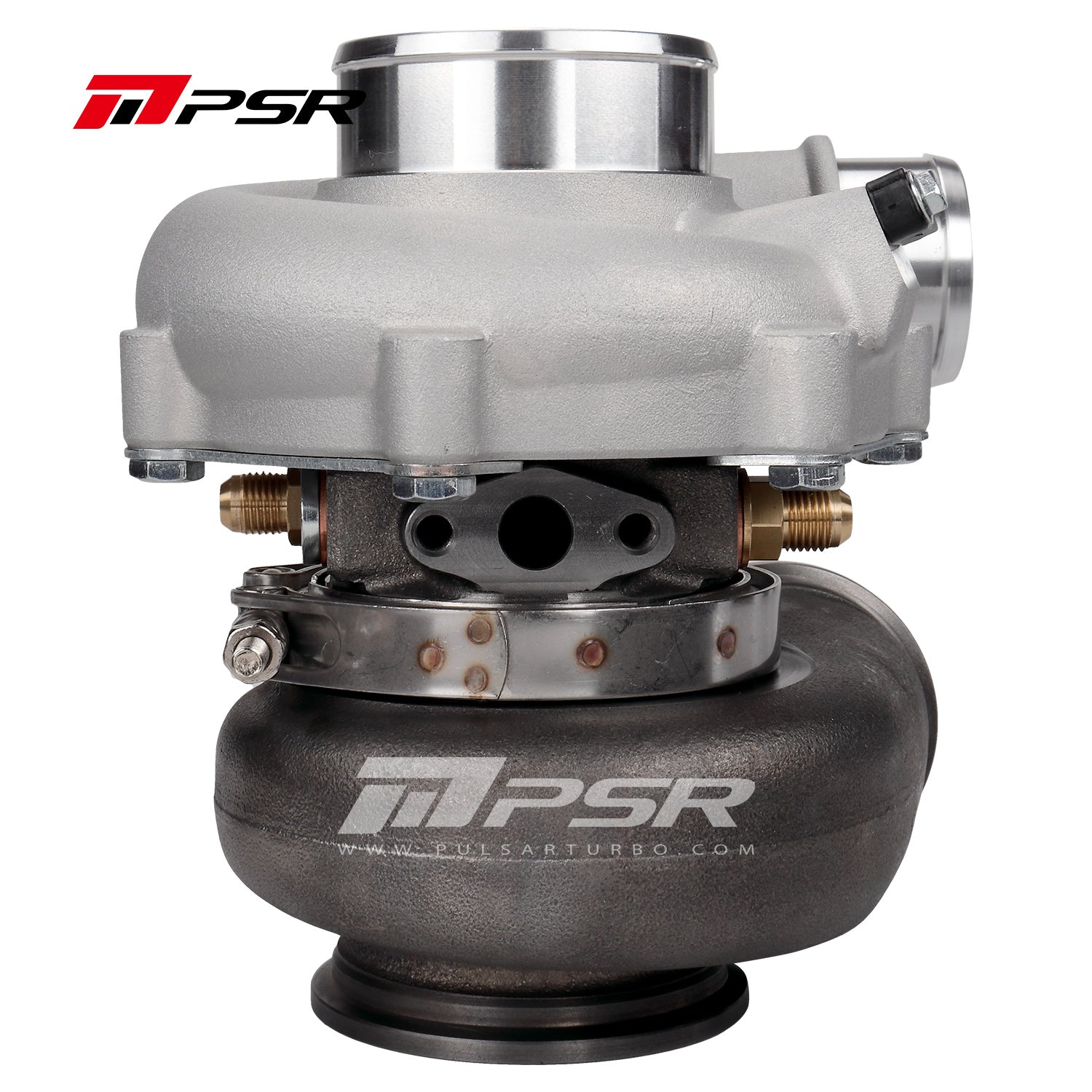

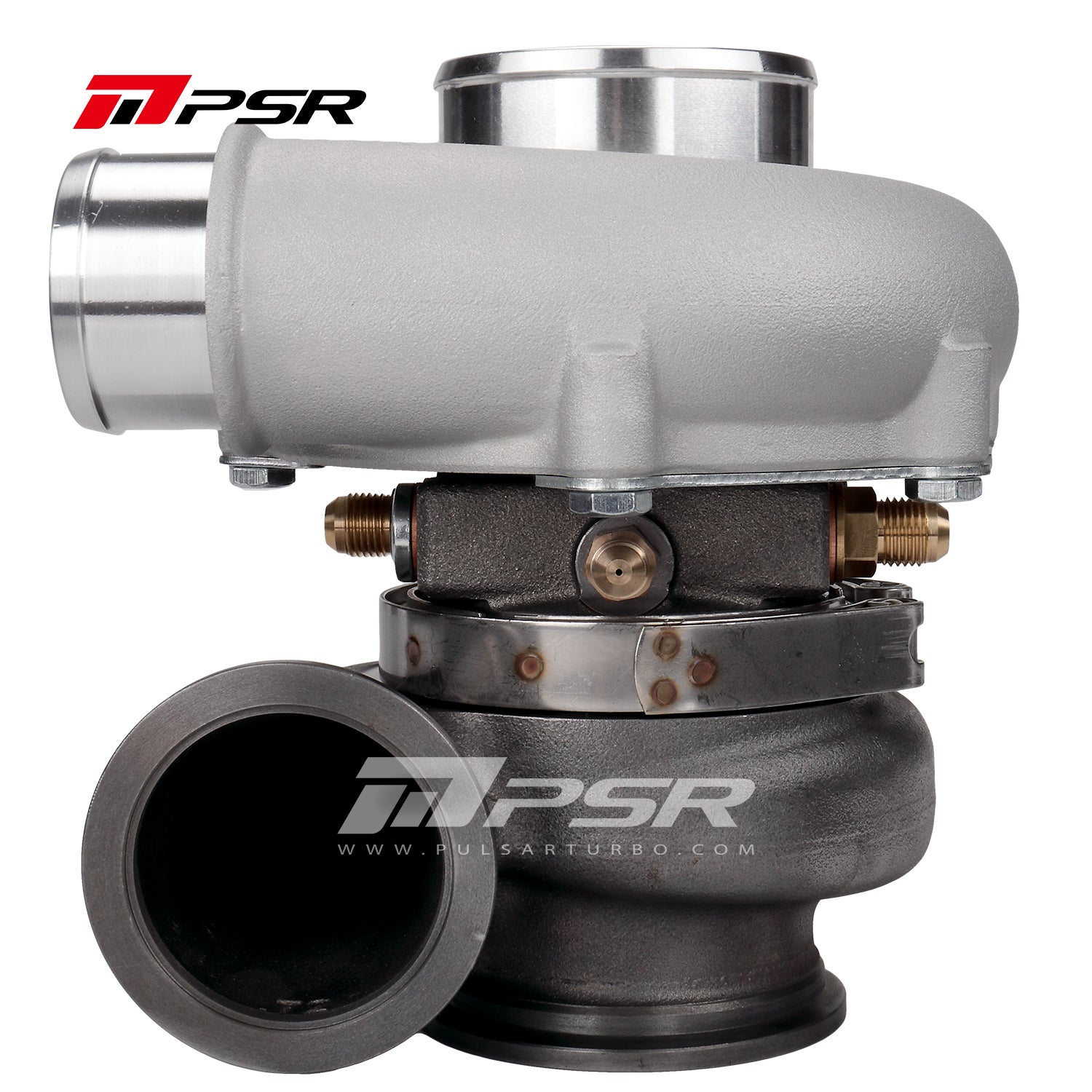

PULSAR G25-550 Dual Ball Bearing Turbo
Compressor Housing:Standard
Turbine Housing:.72 Dual V-Band W/O IWG
Quantity:
Dual Ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

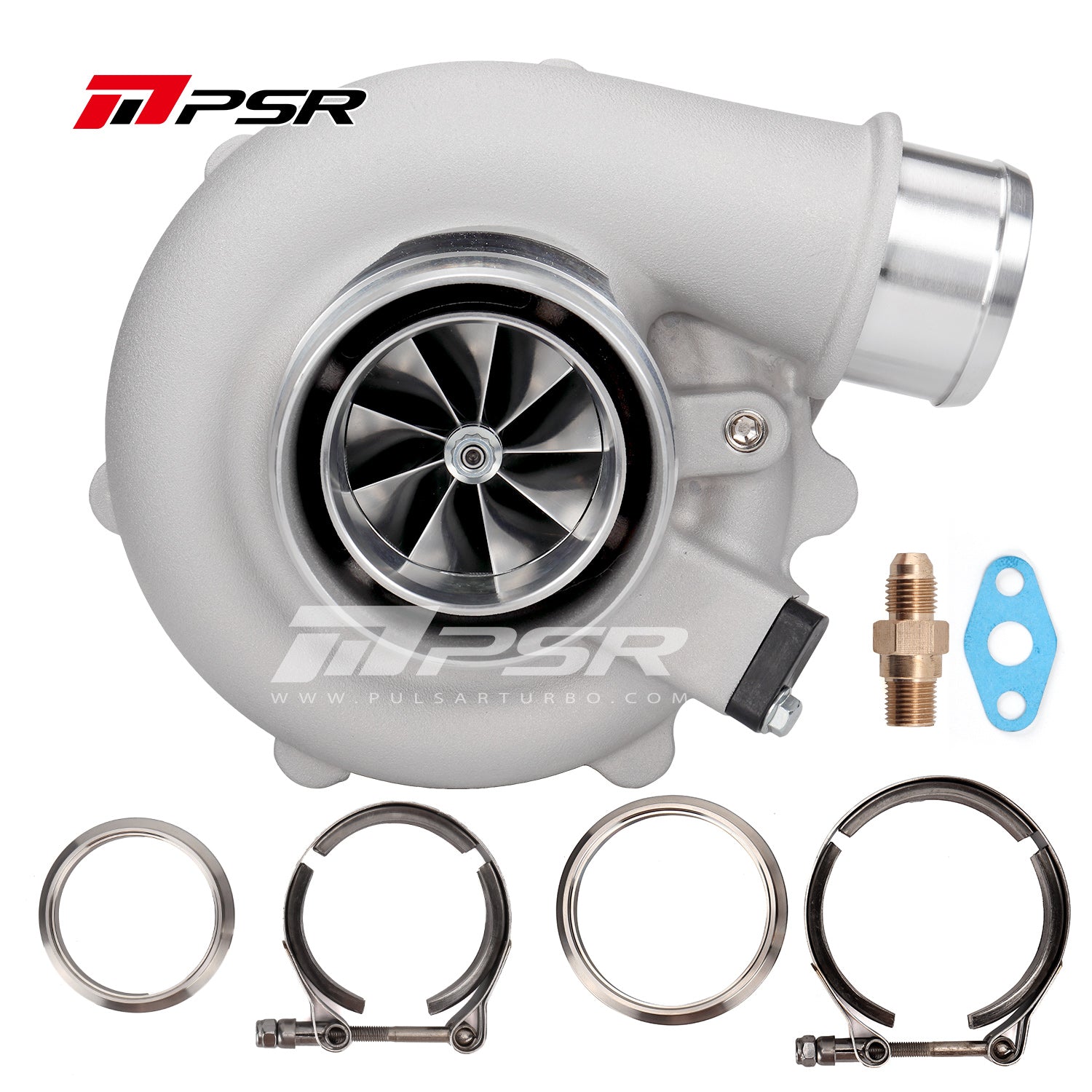

9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

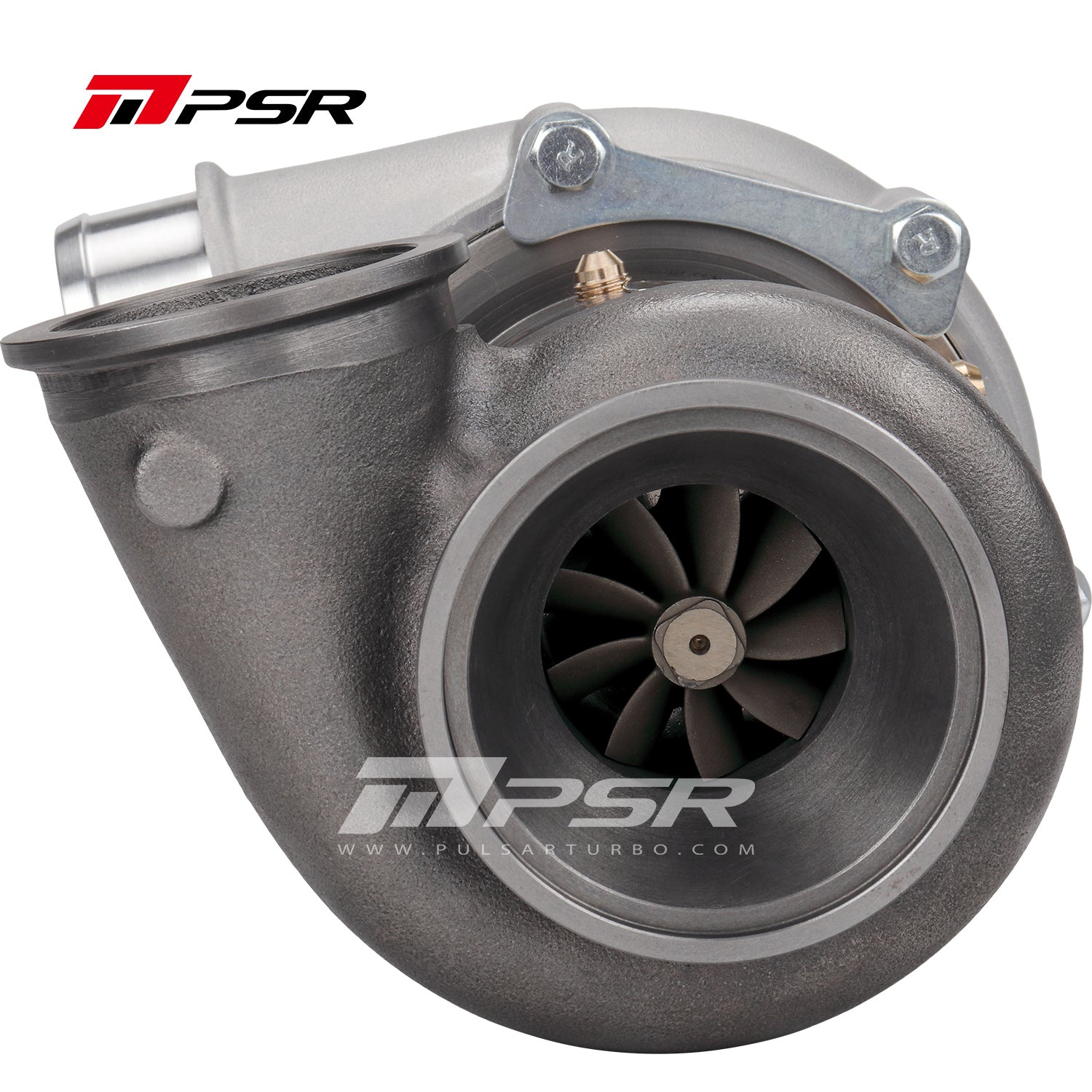

9 Blade G-Aero Inconel 713c Turbine Wheel

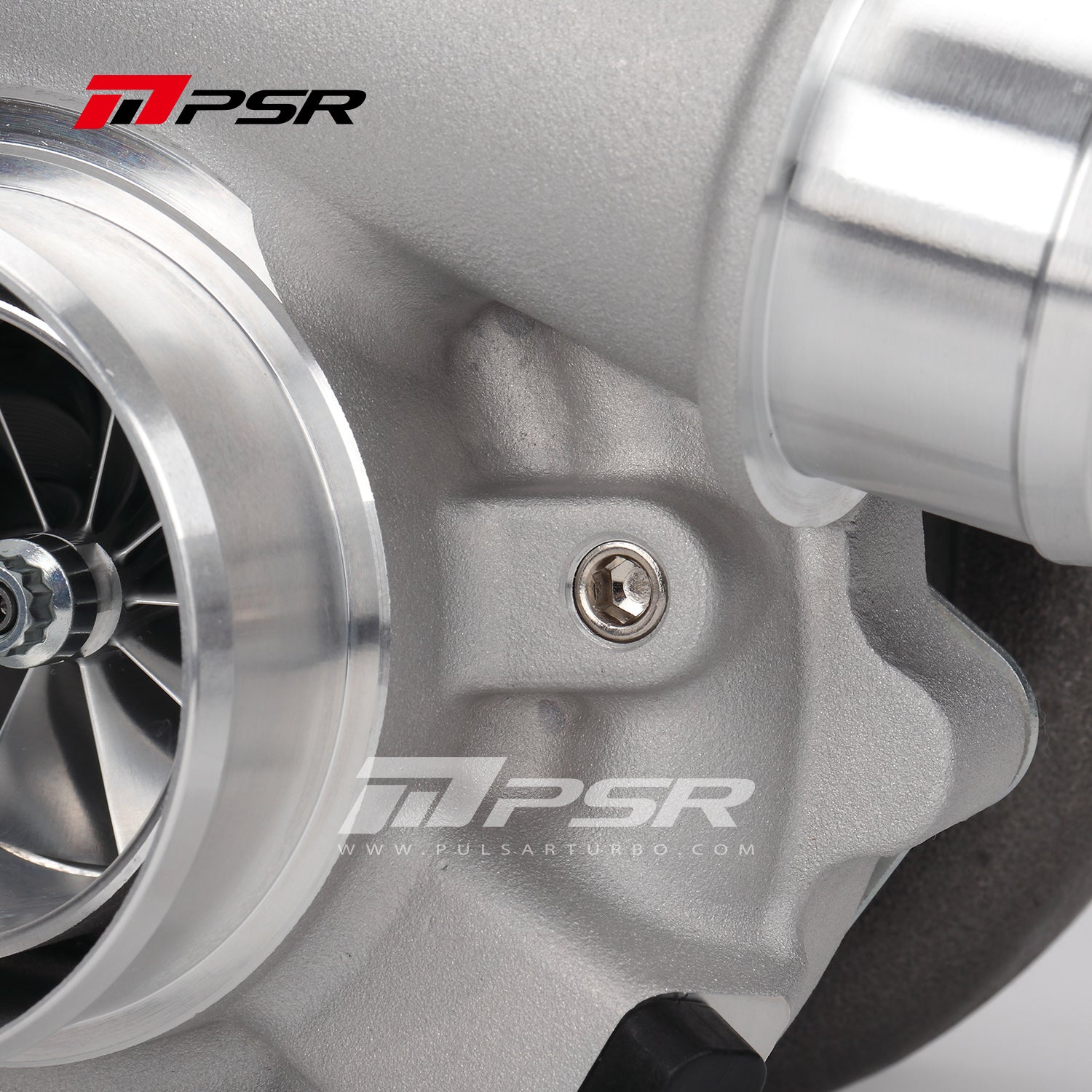

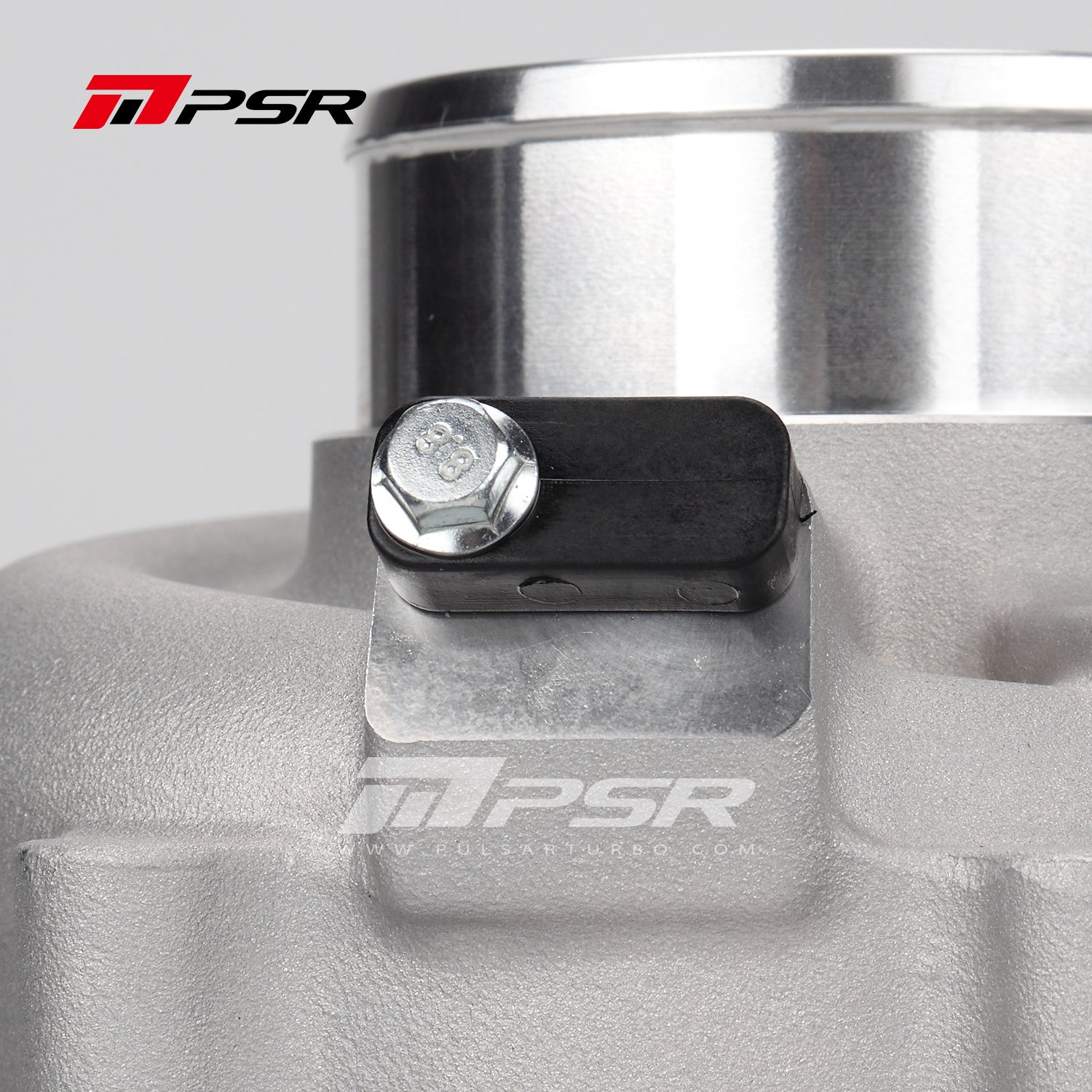

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Internally Wastegated, Billet Actuator(12-14 psi)
Description
Compressor Wheel: 48*60mm
Turbine Wheel: 54*49mm
Compressor Inlet: 3? Hose

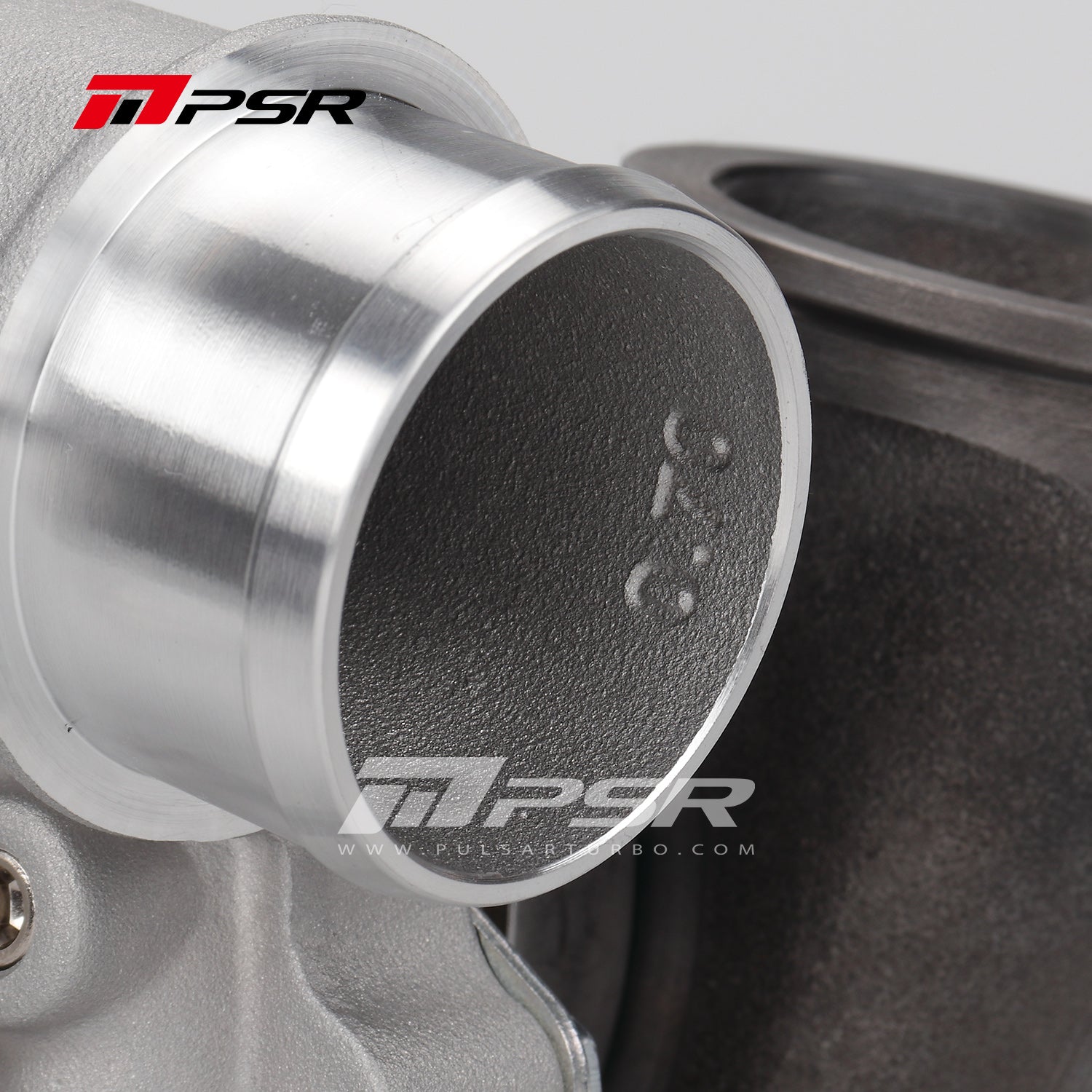

Compressor Outlet: 2? Hose
Turbine Inlet: 2.5? V-Band

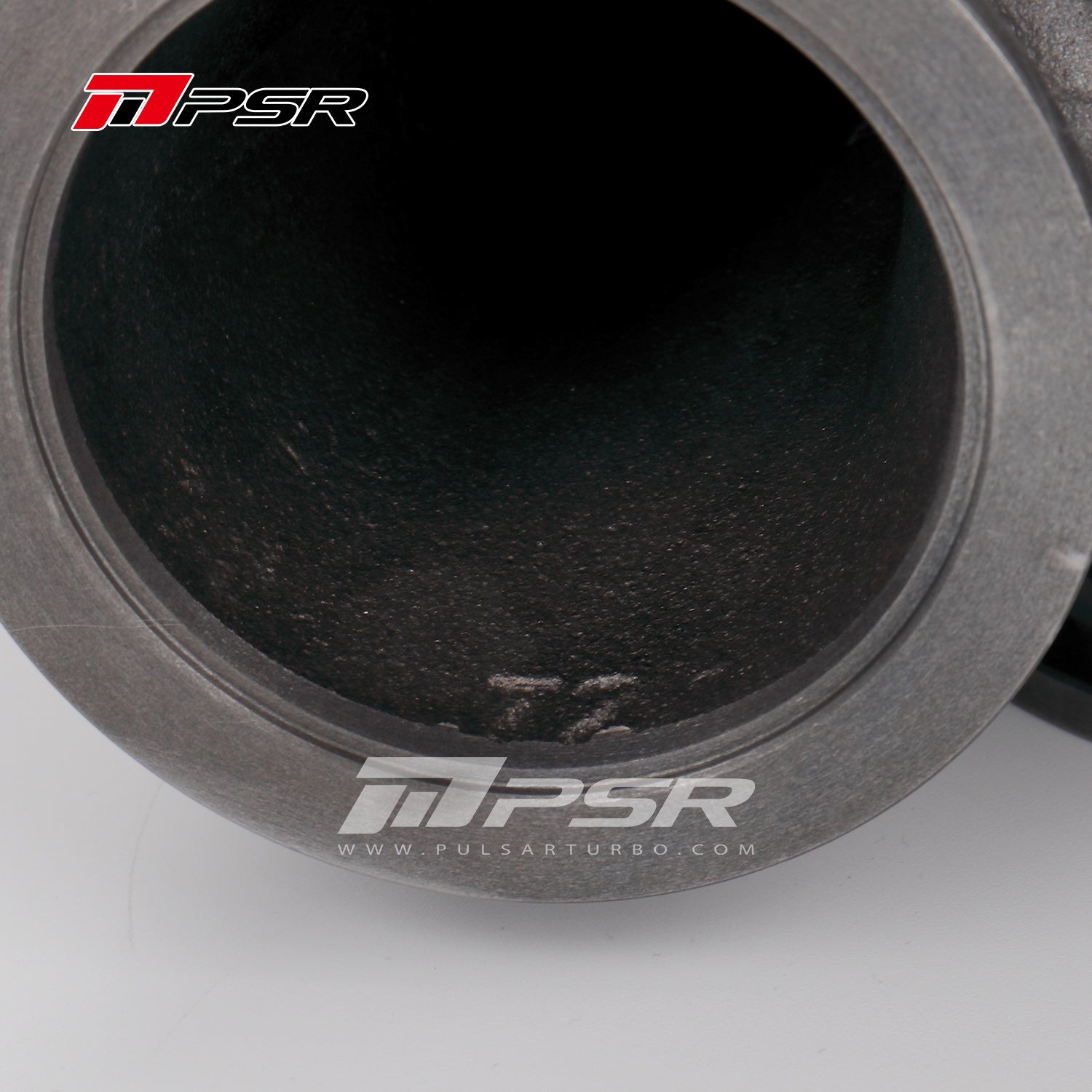

Turbine Outlet: 3? V-Band
Water Ports: -6AN
Oil Feed: -4AN to the Oil Restrictor
Oil Drain: Std T3 Oil Drain Flange
