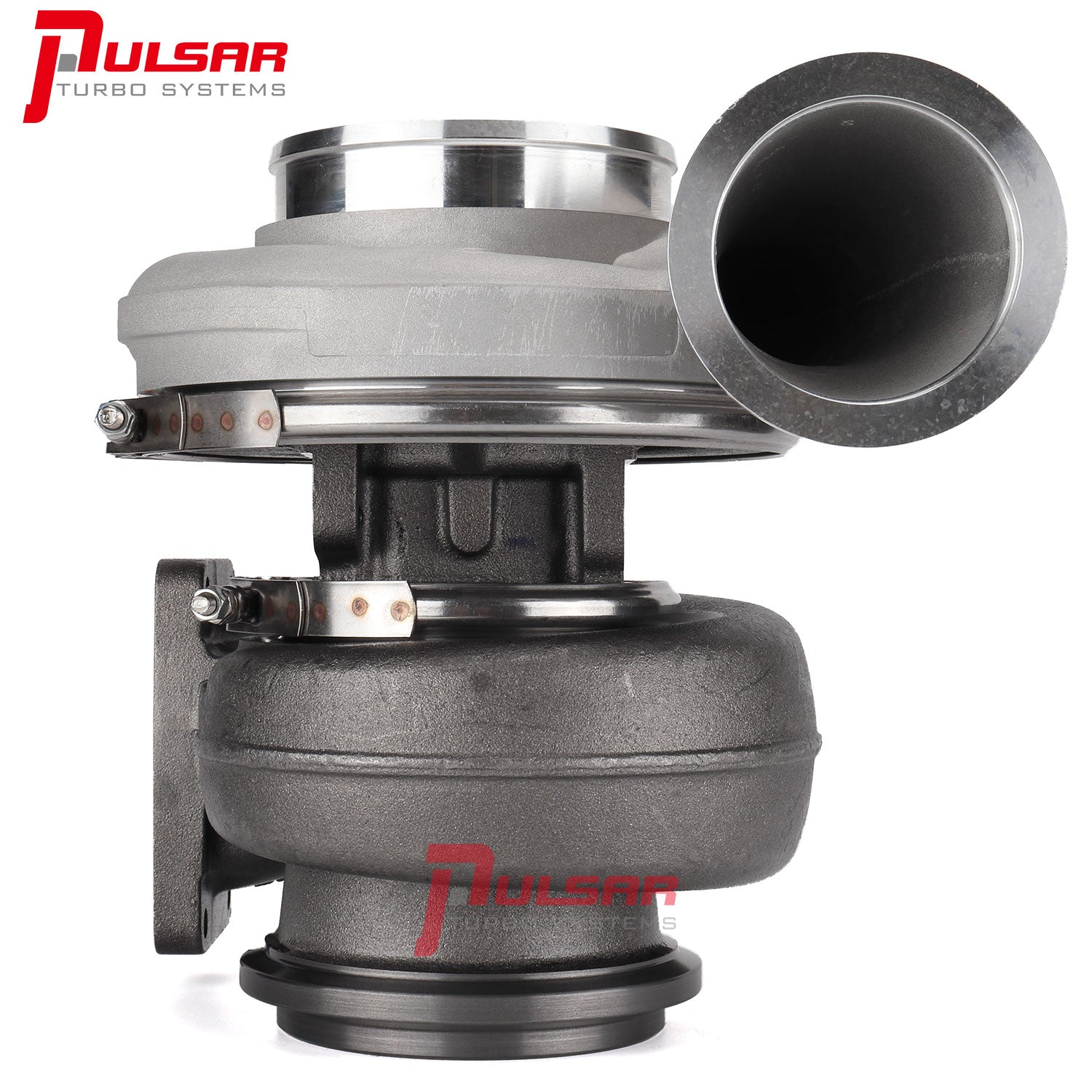

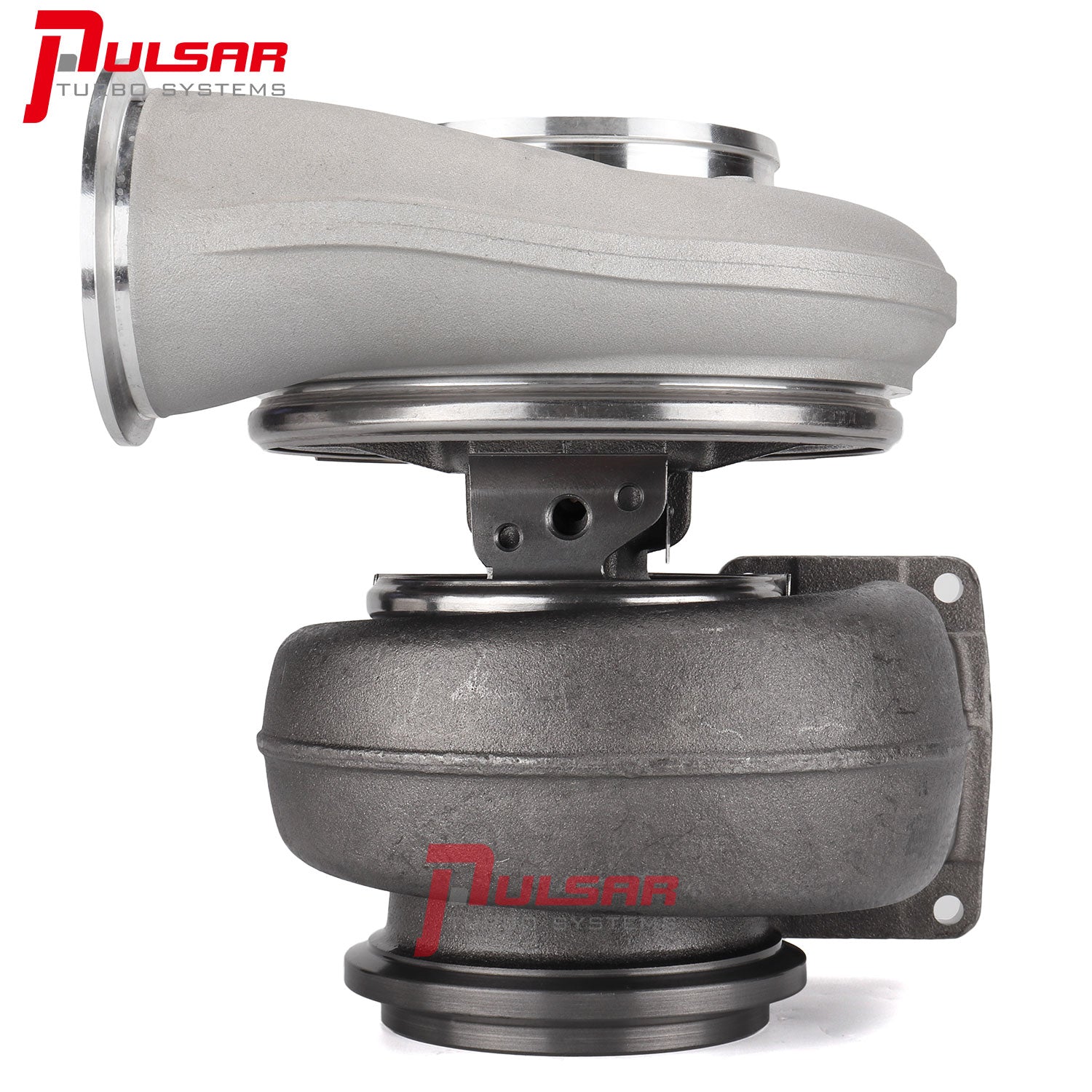

PULSAR Billet S488 Turbo with 96mm Turbine wheel

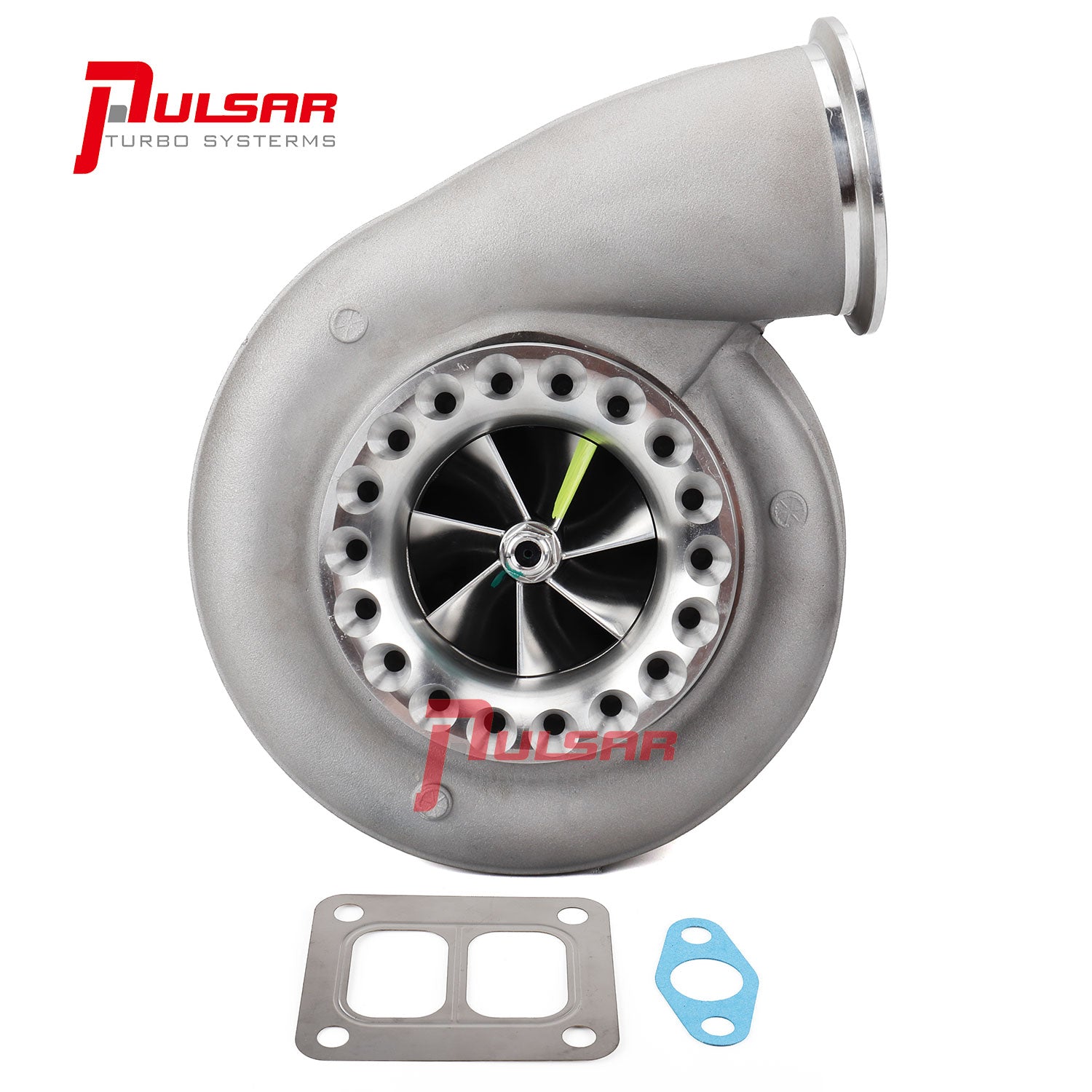

7+7 blades 88*117mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
S400 96*88mm Inconel 713 turbine wheel for high-temperature operation
T6 Divided turbine housings in 1.32A/R? or 1.58 A/R with 5? V Band Outlet 5.75 OD Marmon flange
T4 Divided turbine housing in 1.25 A/R
Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower
Compressor Wheel: 88*117mm
Turbine Wheel: 96*88mm
Compressor Inlet: 5? Hose
Compressor Outlet: V-Band
Turbine Inlet: T6 or T4
Turbine Outlet: 5.75? Marmon(T6) or 4? V-Band(T4)
Oil Feed: 1/4 NPT
Oil Drain: Std T6 Drain Flange
