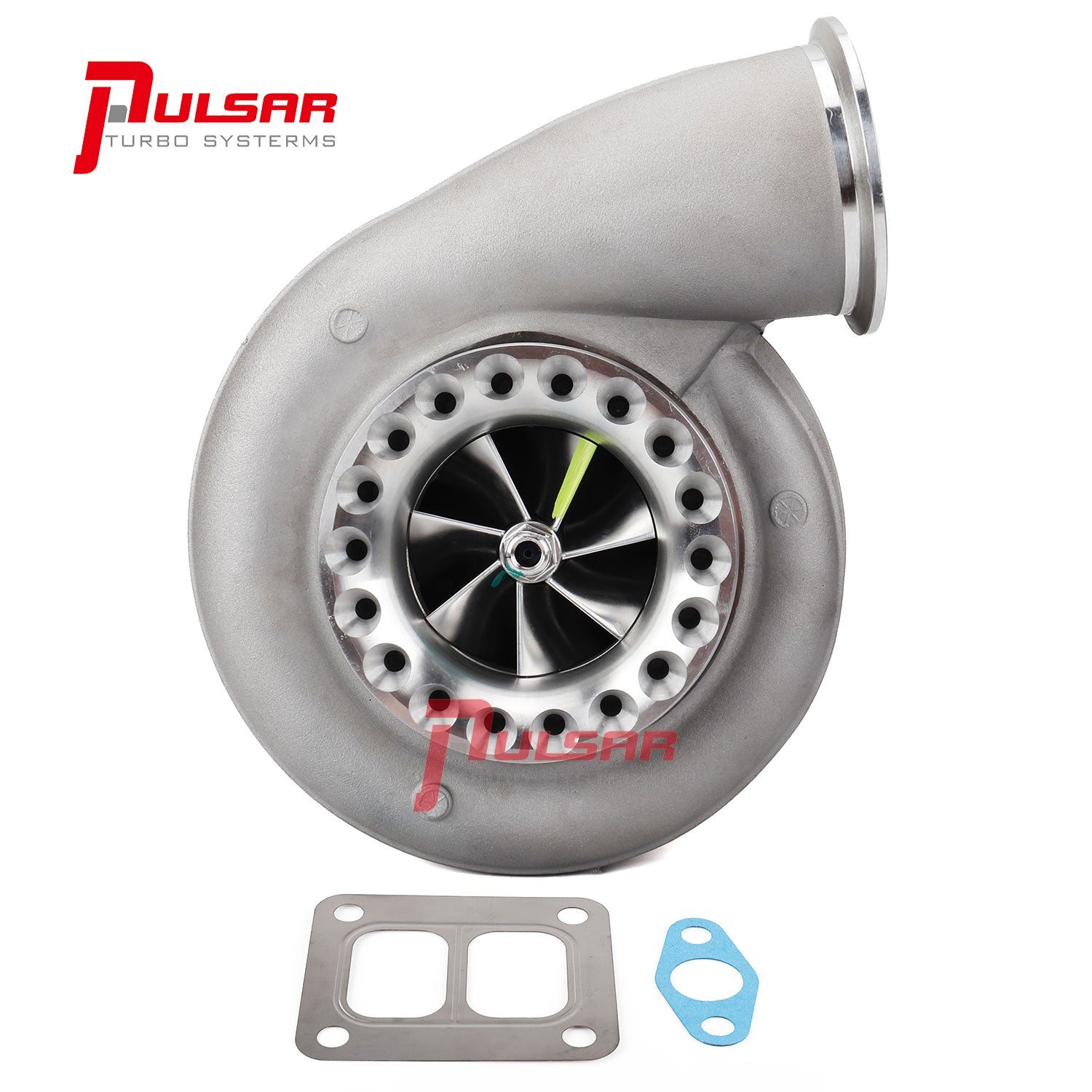

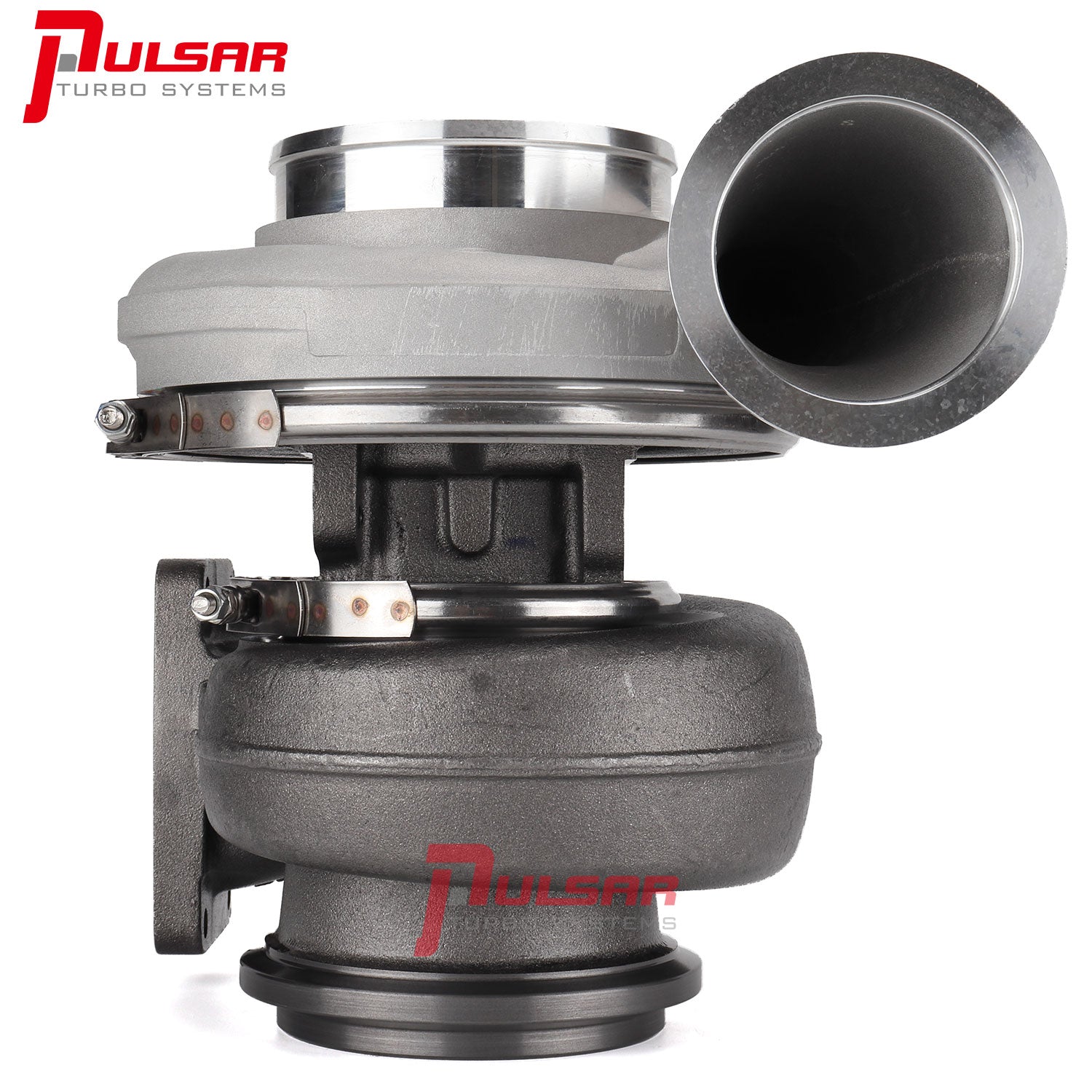

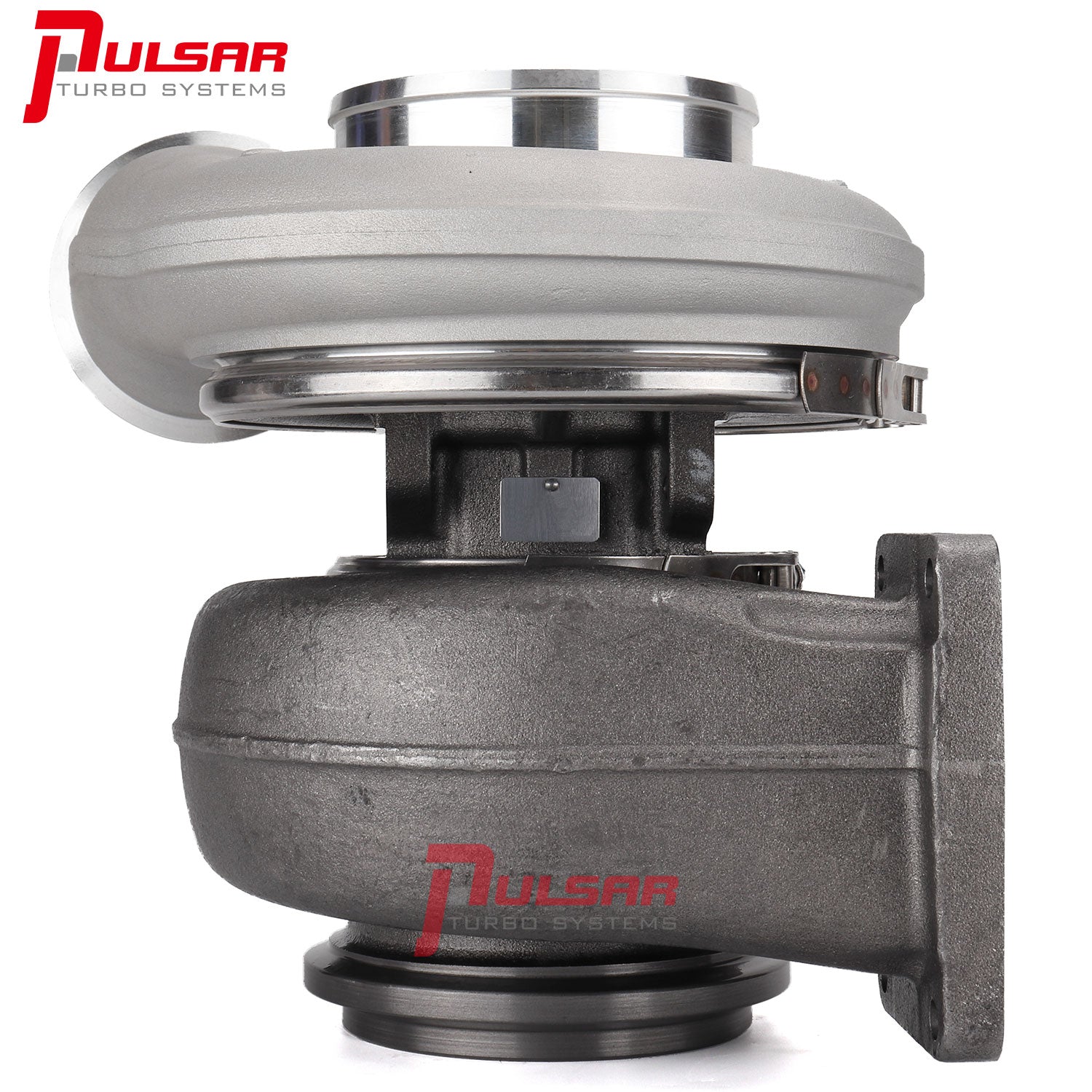

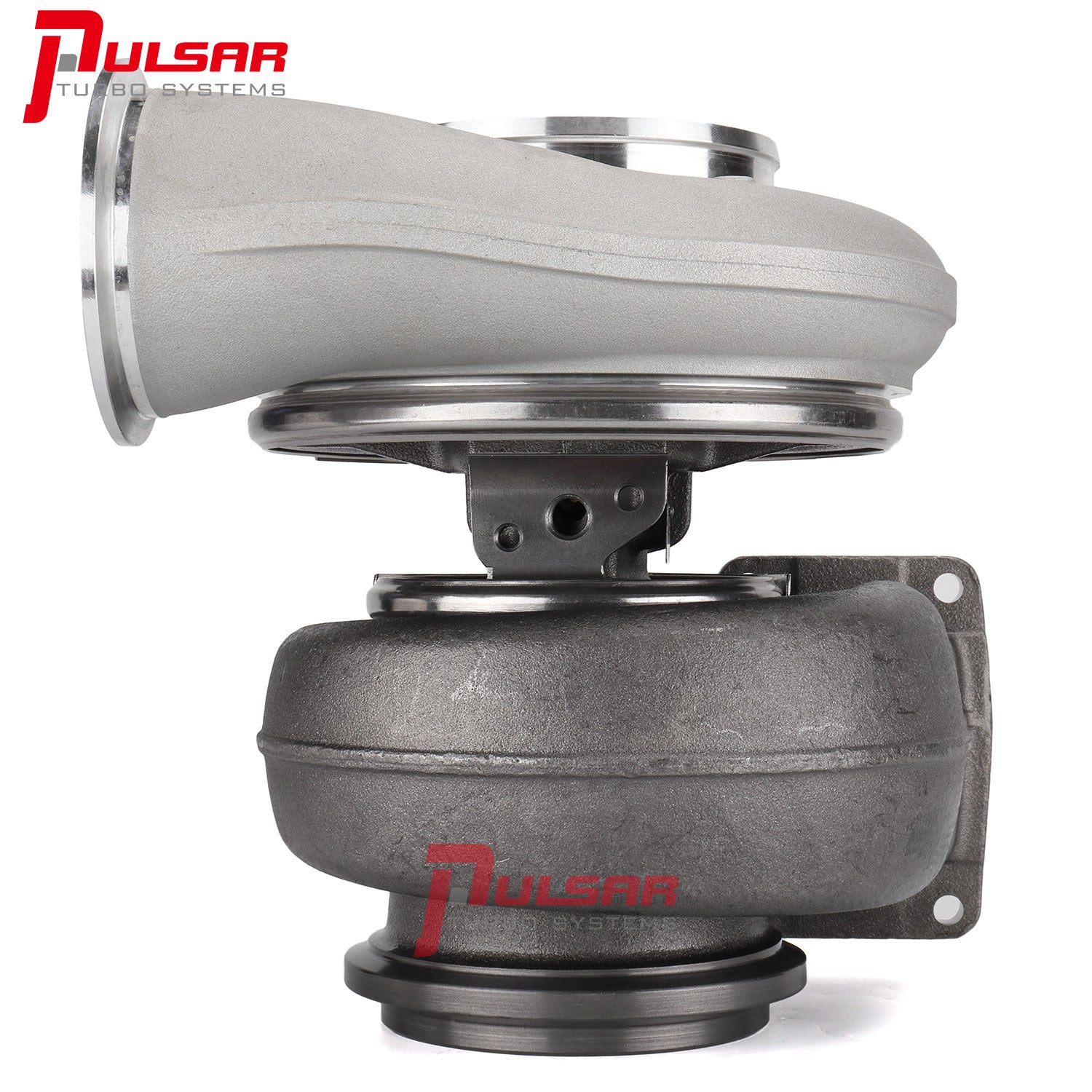

PULSAR Billet S480 Turbo with 96mm Turbine wheel
Turbine Housing:T6 1.32 A/R
Quantity:
7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics
S400 96*88mm Inconel 713 turbine wheel for high-temperature operation
T6 Divided turbine housings in 1.32A/R? or 1.58 A/R with 5? V Band Outlet 5.75 OD Marmon flange
T4 Divided turbine housing in 1.25 A/R 0r 1.10 A/R
Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower
Description
Compressor Wheel: 80*113mm
Turbine Wheel: 96*88mm or 83*74mm
Compressor Inlet: 5? Hose
Compressor Outlet: V-Band
Turbine Inlet: T6 or T4
Turbine Outlet: 5.75? Marmon(T6) or 4? V-Band(T4)
Oil Feed: 1/4 NPT
Oil Drain: Std T6 Drain Flange
