Pulsar Turbo Systems

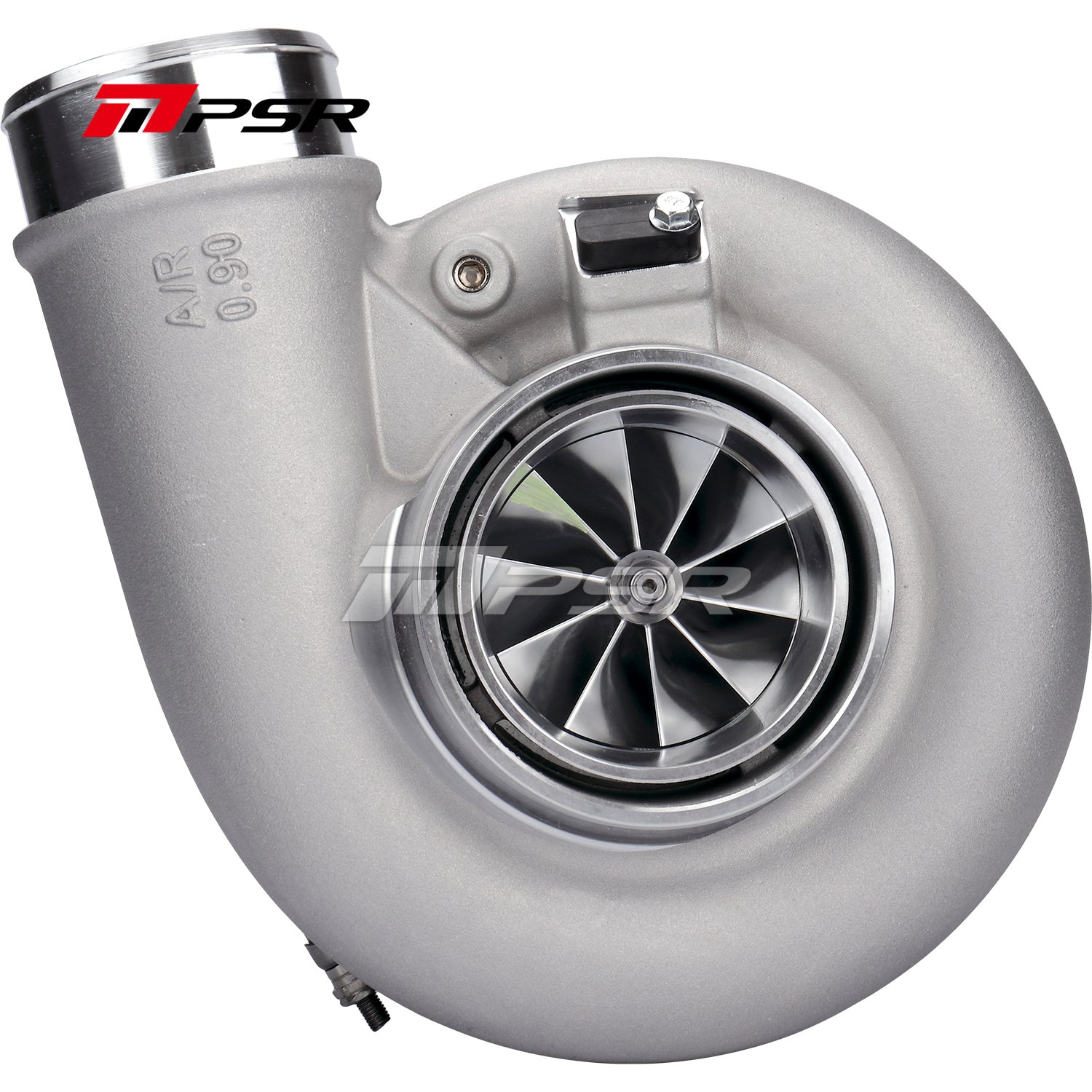

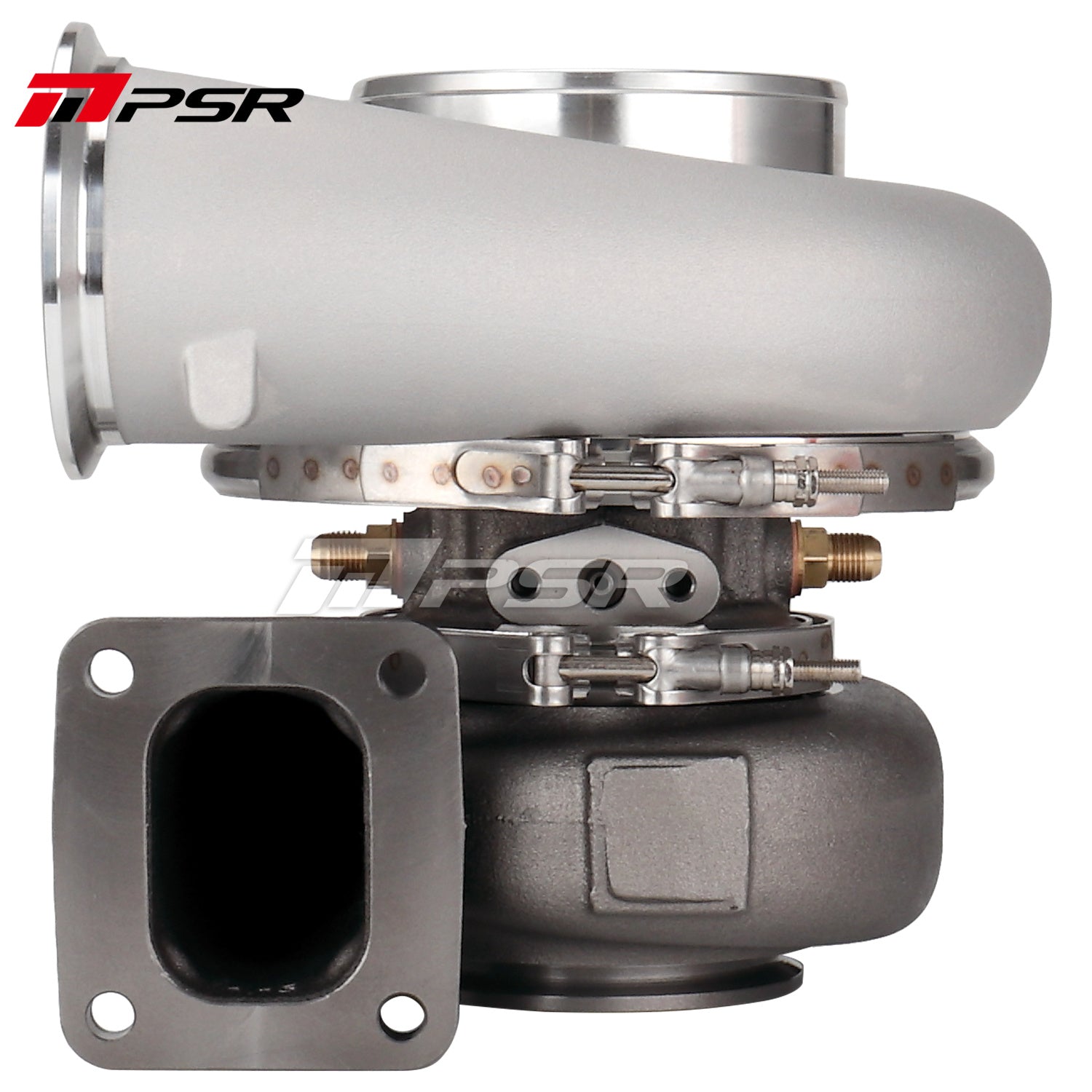

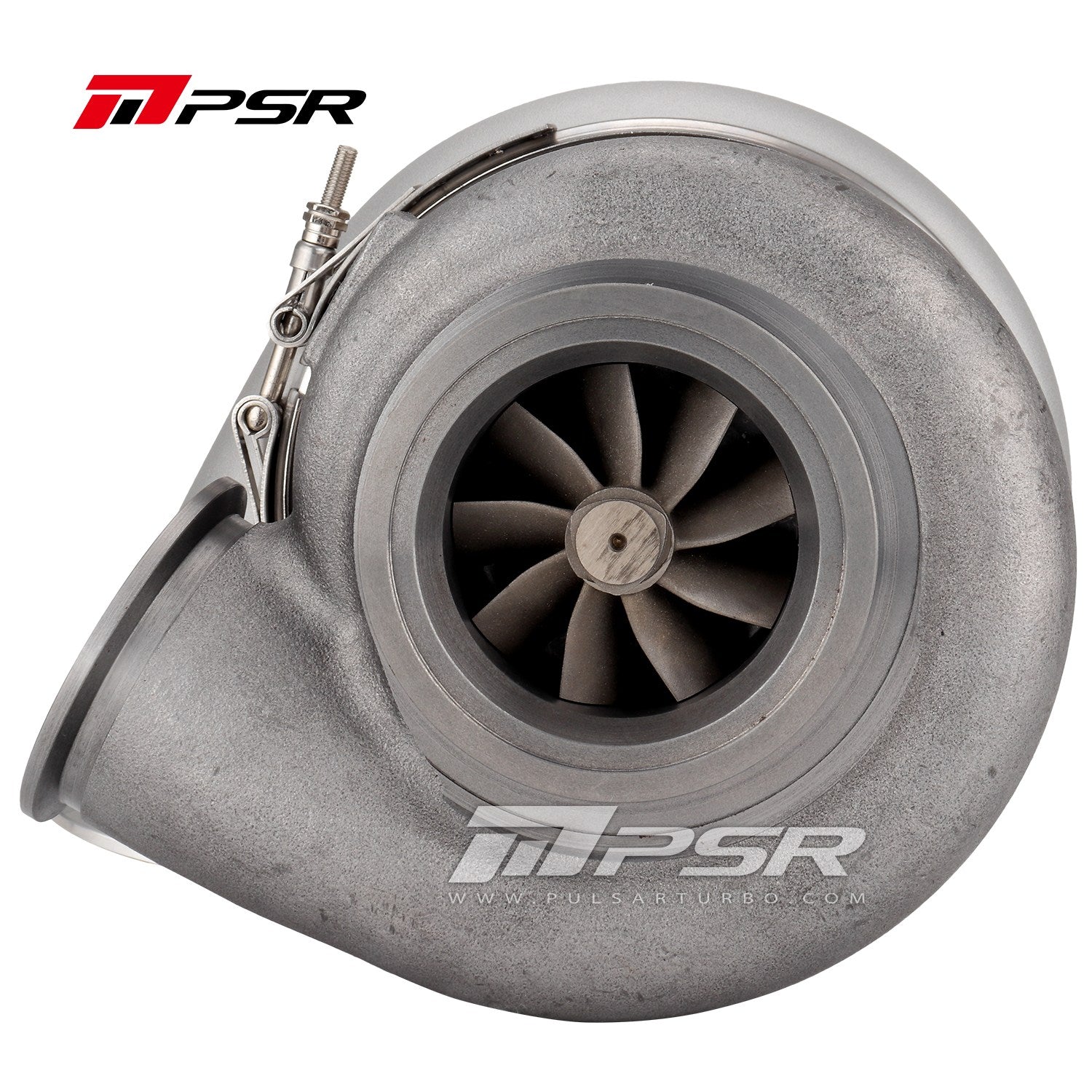

PULSAR 7375G aka COMPACT G42-1200 Dual Ball Bearing Turbo
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
Compressor Wheel: 73*91mm
Turbine Wheel: 82*75mm
Compressor Inlet: 4? Hose
Compressor Outlet: 3? hose
Turbine Outlet: 3.5? V-Band
Water Ports: -6AN
Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
T4 1.15 A/R, dual v-band 1.15 and 1.28 housings are with an open style inlet(default flange in the box is 3.5?), T4 1.28 A/R housing is with a twin-scroll inlet (4? outlet flange in the box)
