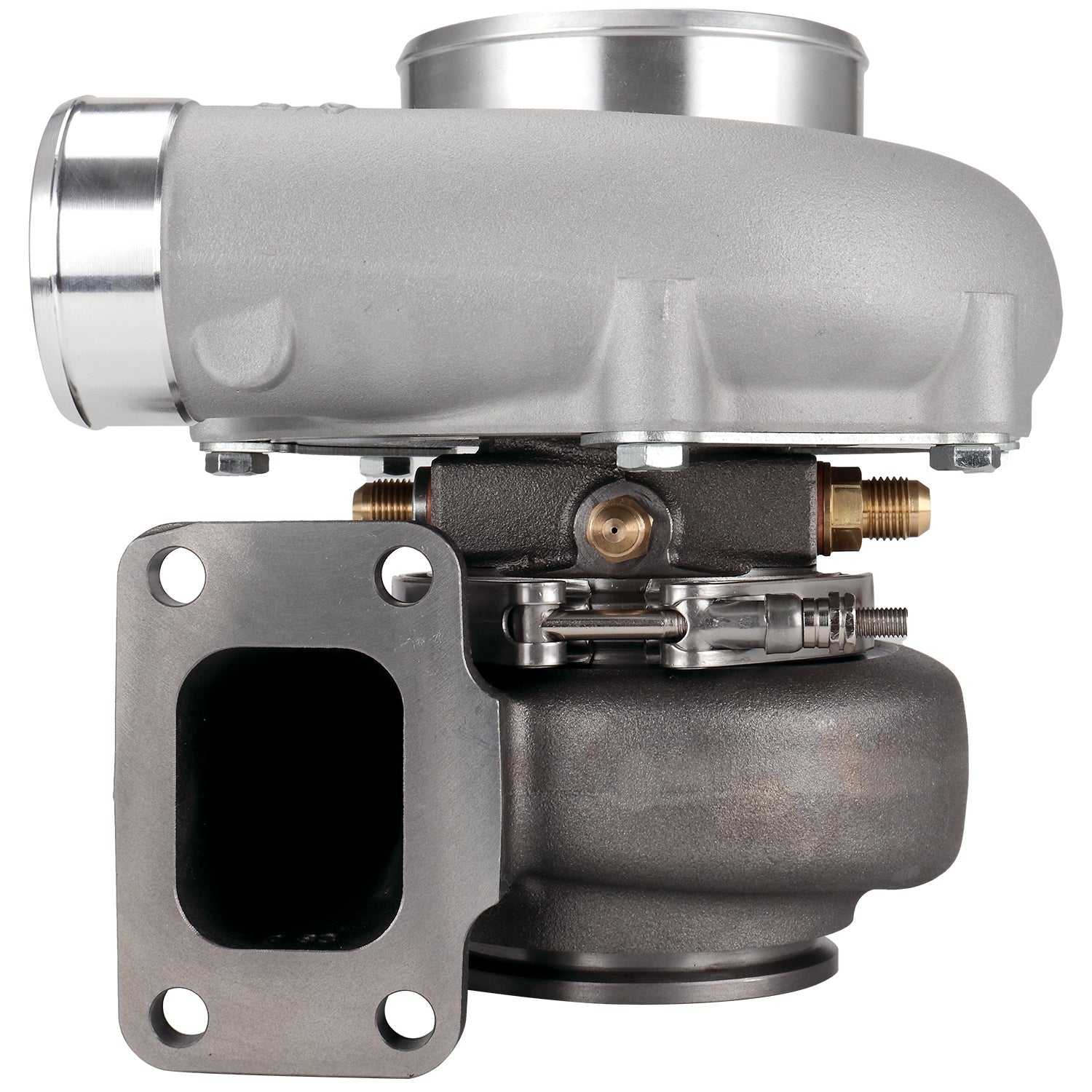

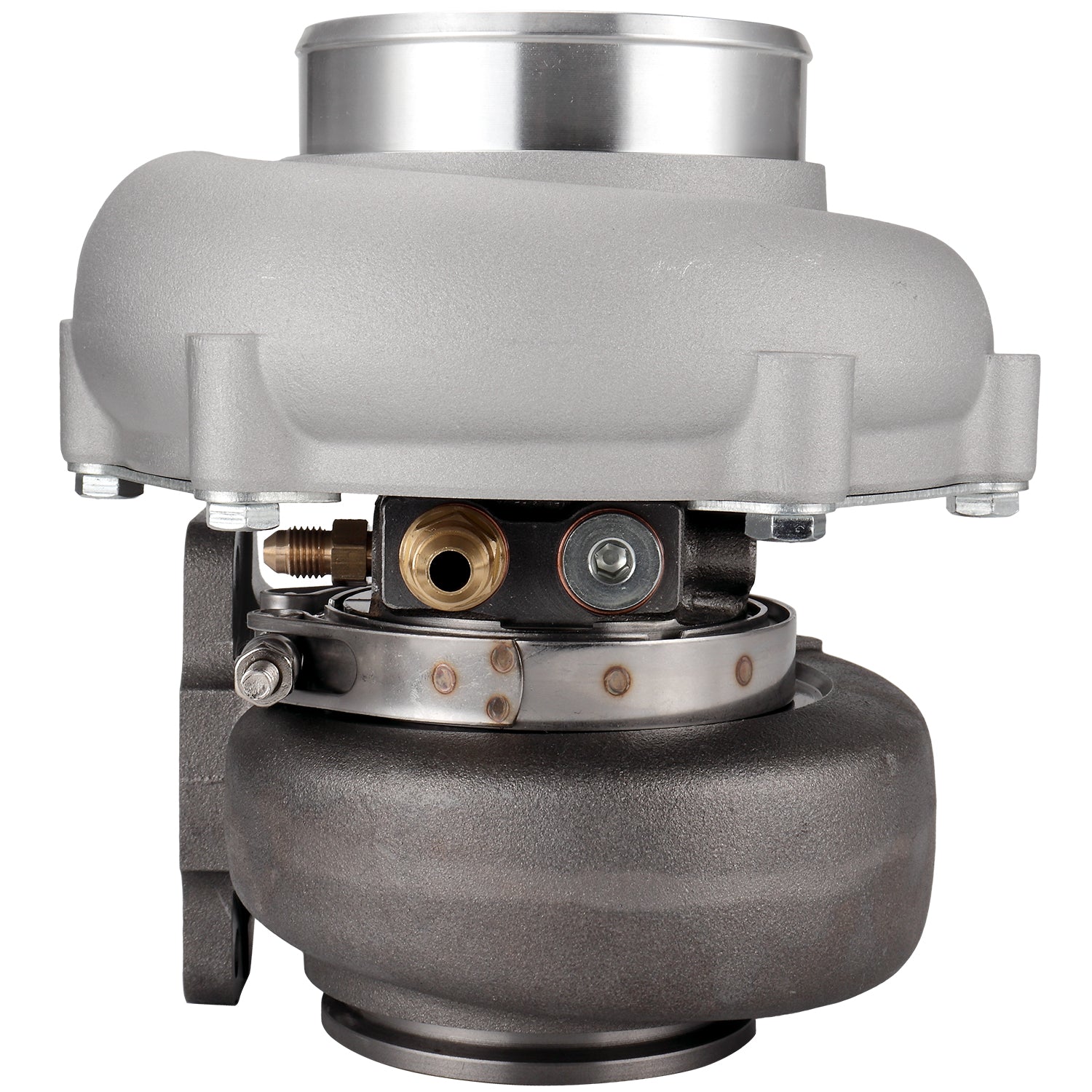

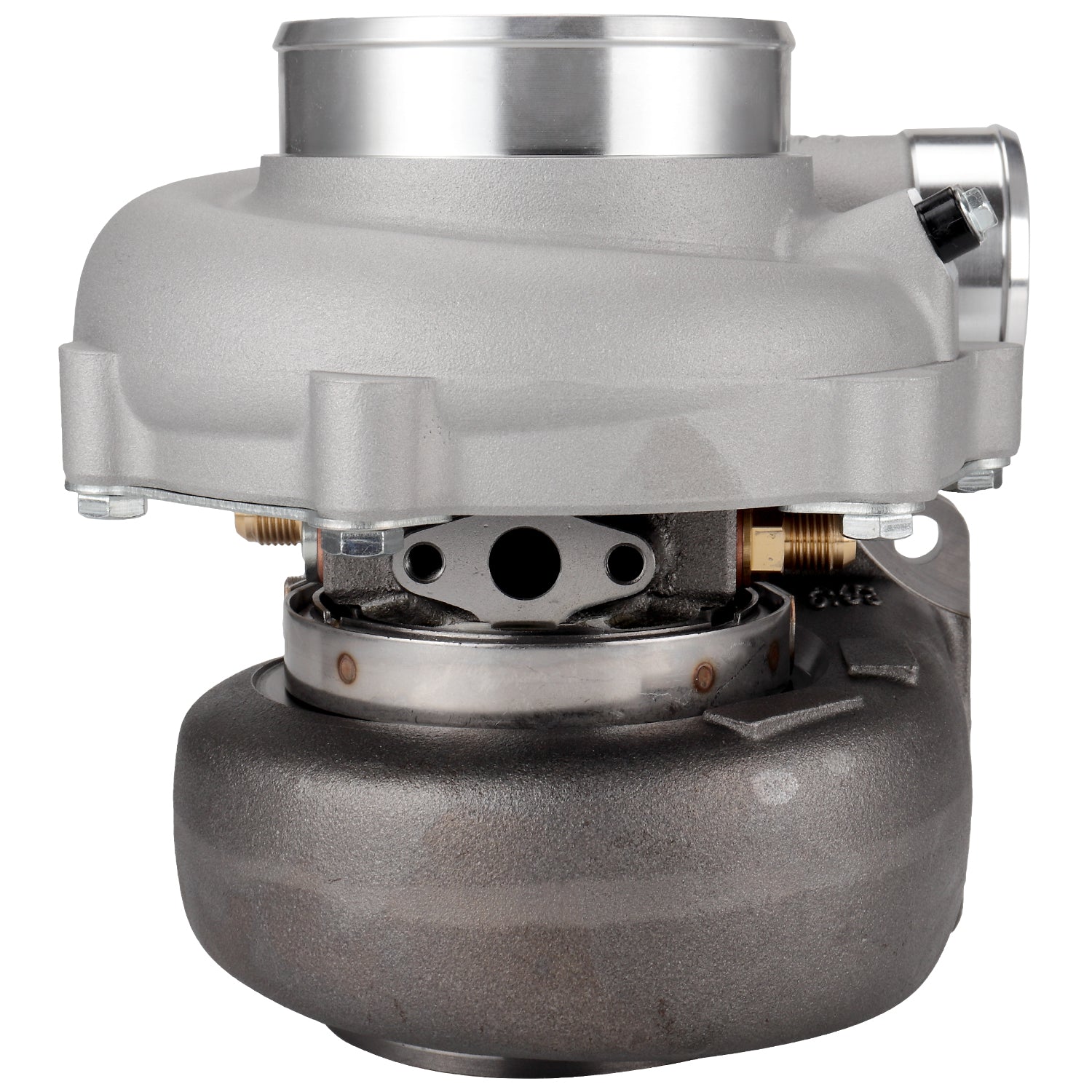

PULSAR 6862G aka G35-1050 Dual Ball Bearing Turbo
Compressor Housing:Standard
Turbine Housing:T3 Inlet V-Band Outlet 0.83 A/R
Quantity:
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

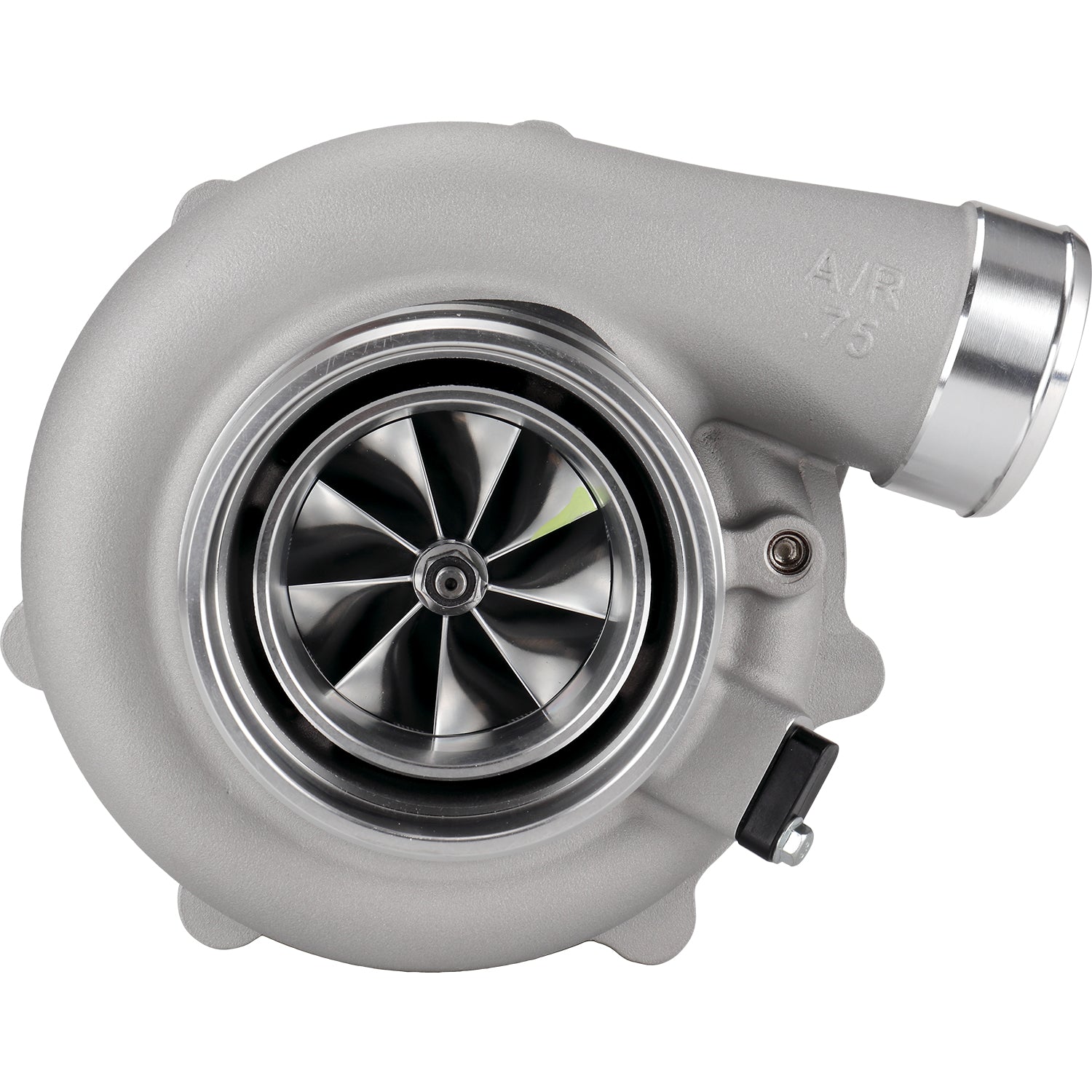

9 Blade G-Aero billet compressor wheel with extended tapered tip technology

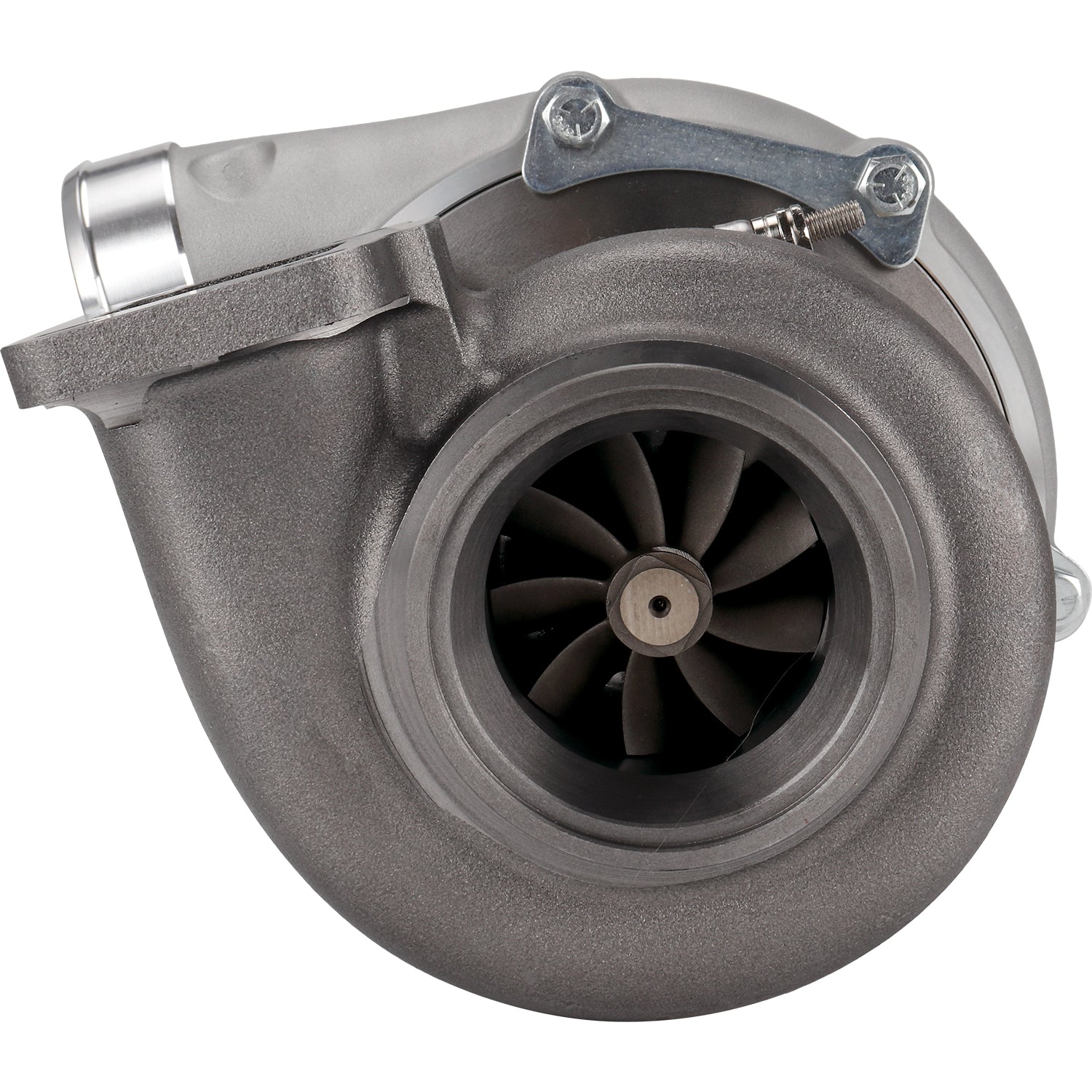

9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
Compressor Wheel: 68*84mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4?? Hose
Compressor Outlet: 2.5?? V-Band
Turbine Inlet: T3/T4
Turbine Outlet: 3?? V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
