Pulsar Turbo Systems

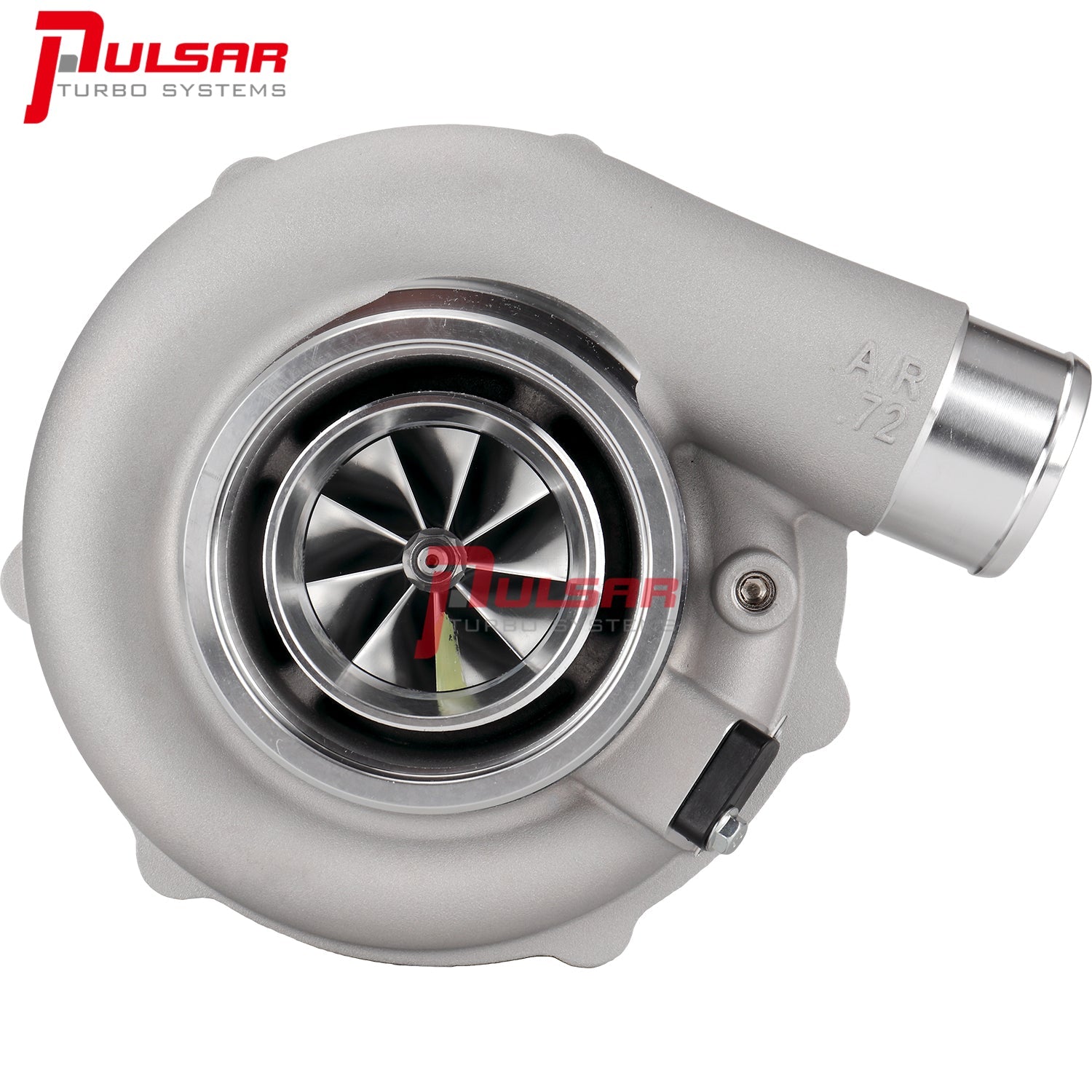

PULSAR 5855G aka G30-770 Dual Ball Bearing Turbo
Compressor Housing:Standard
Turbine Housing:W/O Turbine Housing
Quantity:
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
9 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
Compressor Wheel: 58*71mm
Turbine Wheel: 60*55mm
Compressor Inlet: 4? Hose
Compressor Outlet: 2? Hose
Turbine Inlet: T3 or T4
Turbine Outlet: 3? V-Band
Water Ports: 2-M14 X 1.5
Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
Oil Outlet: Std T3 Oil Drain Flange
