PSR PRO106 Compressor Inducer 106mm (G57-3000)

Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
Fin cooled aluminum center housing, lighter weight
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Outline interchangeable with GTX55 Gen II turbos
Compressor Wheel: 106*144mm
Turbine Wheel: 118*112mm
Compressor Inlet: 6” Hose
Compressor Outlet: 4” V-band
Compressor Housing A/R: 0.96
Turbine Inlet: 3.5” V-Band
Turbine Outlet: 5” V-Band
Turbine Housing A/R: 1.25

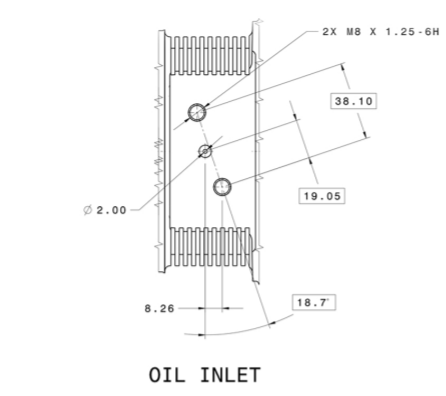

Oil Feed: See graph below(OIL INLET) (1mm restrictor will be needed, prevent higher than 45psi oil pressure into turbocharger’s internals)

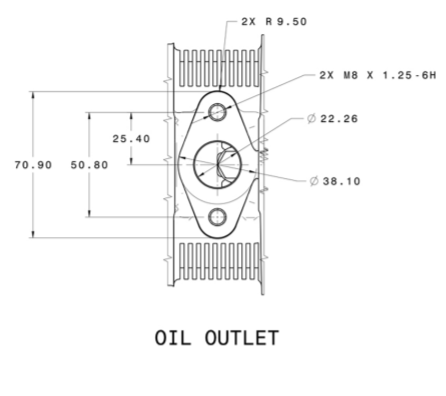

Oil Drain: See graph in pictures (OIL OUTLET)
