Raceworks

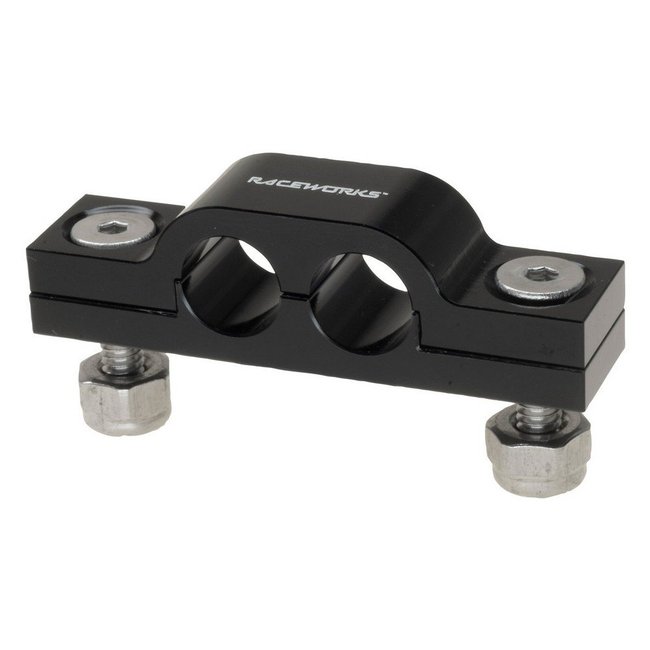

PANEL MOUNTABLE LINE SEPARATORS
ID Metric and ID Imperial:6.4mm 1/4"
Quantity:
| ID Metric | ID Imperial | Part Number |
|---|---|---|
| 6.4mm | 1/4" | RWF-148-6MM |
| 7.9mm | 5/16" | RWF-148-8MM |
| 9.5mm | 3/8" | RWF-148-10MM |
| 11.1mm | 7/16" | RWF-148-11MM |
| 12.7mm | 1/2" | RWF-148-12MM |
| 13.5mm | 17/32" | RWF-148-13MM |
| 14.3mm | 9/16" | RWF-148-14MM |
| 15.9mm | 5/8" | RWF-148-16MM |
| 16.7mm | 21/32" | RWF-148-17MM |
| 19.1mm | 3/4" | RWF-148-19MM |
| 20.6mm | 13/16" | RWF-148-21MM |
| 23.8mm | 15/16" | RWF-148-24MM |
| 25.4mm | 1" | RWF-148-25MM |
100/140 Series Panel Mountable Line Separators
| 100 Series | Line Separator |
|---|---|
| -4 | RWF-148-11MM |
| -6 | RWF-148-13MM |
| -8 | RWF-148-16MM |
| -10 | RWF-148-21MM |
| -12 | RWF-148-24MM |
| -16 | – |
| -20 | – |
120 Series Panel Mountable Line Separators
| 120 Series | Line Separator |
|---|---|
| -6 | RWF-148-13MM |
| -8 | RWF-148-16MM |
| -10 | RWF-148-21MM |
| -12 | RWF-148-24MM |
| -16 | – |
| -20 | – |
200/230/240 Series Panel Mountable Line Separators
| 200/230/240 Series | Line Separator |
|---|---|
| -3 | RWF-148-6MM |
| -4 | RWF-148-8MM |
| -6 | RWF-148-11MM |
| -8 | RWF-148-13MM |
| -10 | RWF-148-16MM |
| -12 | RWF-148-19MM |
260 Series Panel Mountable Line Separators
| 260 Series | Line Separator |
|---|---|
| -3 | RWF-148-6MM |
400 Series Panel Mountable Line Separators
| 400 Series | Line Separator |
|---|---|
| -4 | RWF-148-11MM |
| -5 | RWF-148-13MM |
| -6 | RWF-148-16MM |
| -8 | RWF-148-19MM |
| -10 | RWF-148-24MM |
| -12 | RWF-148-25MM |
300/600/620 Series Panel Mountable Line Separators
| 300/600/620 Series | Line Separator |
|---|---|
| -5 | RWF-148-8MM |
| -6 | RWF-148-10MM |
| -8 | RWF-148-12MM |
| -10 | RWF-148-16MM |
700 Series Panel Mountable Line Separators
| 700 Series | Line Separator |
|---|---|
| -8 | RWF-148-16MM |
| -10 | RWF-148-21MM |
| -12 | RWF-148-25MM |
| -16 | – |
| -20 | – |
