Raceworks

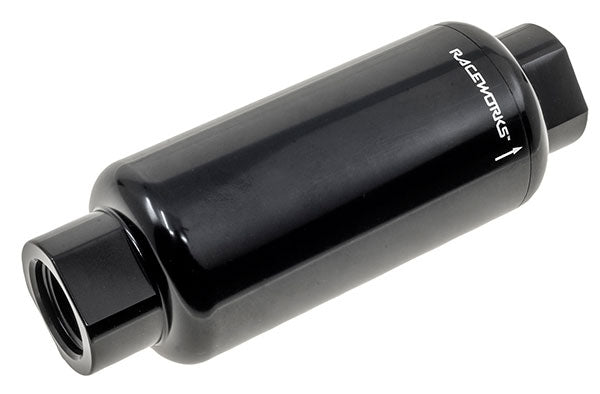

BILLET FUEL FILTER
Microns:100 Micron 140MM long
Quantity:
Raceworks Billet inline filters contain a total filtration surface area of 374 square centimetres. The filters are directional and washable, and suitable for high horsepower applications, supporting up to 2400LPH @ 3Bar. See below for more detailed flow ratings.
INLINE FUEL FILTERS
Stainless lifetime elements and E85 Safe
AN-10 ORB. 50mm DIA. 140mm Long
Which Micron level is suitable? The lower the micron level, the finer the particle it filters, but the more restrictive the filter is on flow. Raceworks recommended a 100 or 75micron filter for use pre-pump, and a 40 or 10micron filter for use post-pump (Pre injectors).
| Micron | Maximum Flow Rating @ 3Bar* | Part Number |
|---|---|---|
| 10 | 1500LPH | ALY-077-10BK |
| 40 | 1800LPH | ALY-077-40BK |
| 75 | 2100LPH | ALY-077-75BK |
| 100 | 2400LPH | ALY-077-100BK |
*Maximum flow rate measured with a pressure drop across the filter of 2psi
