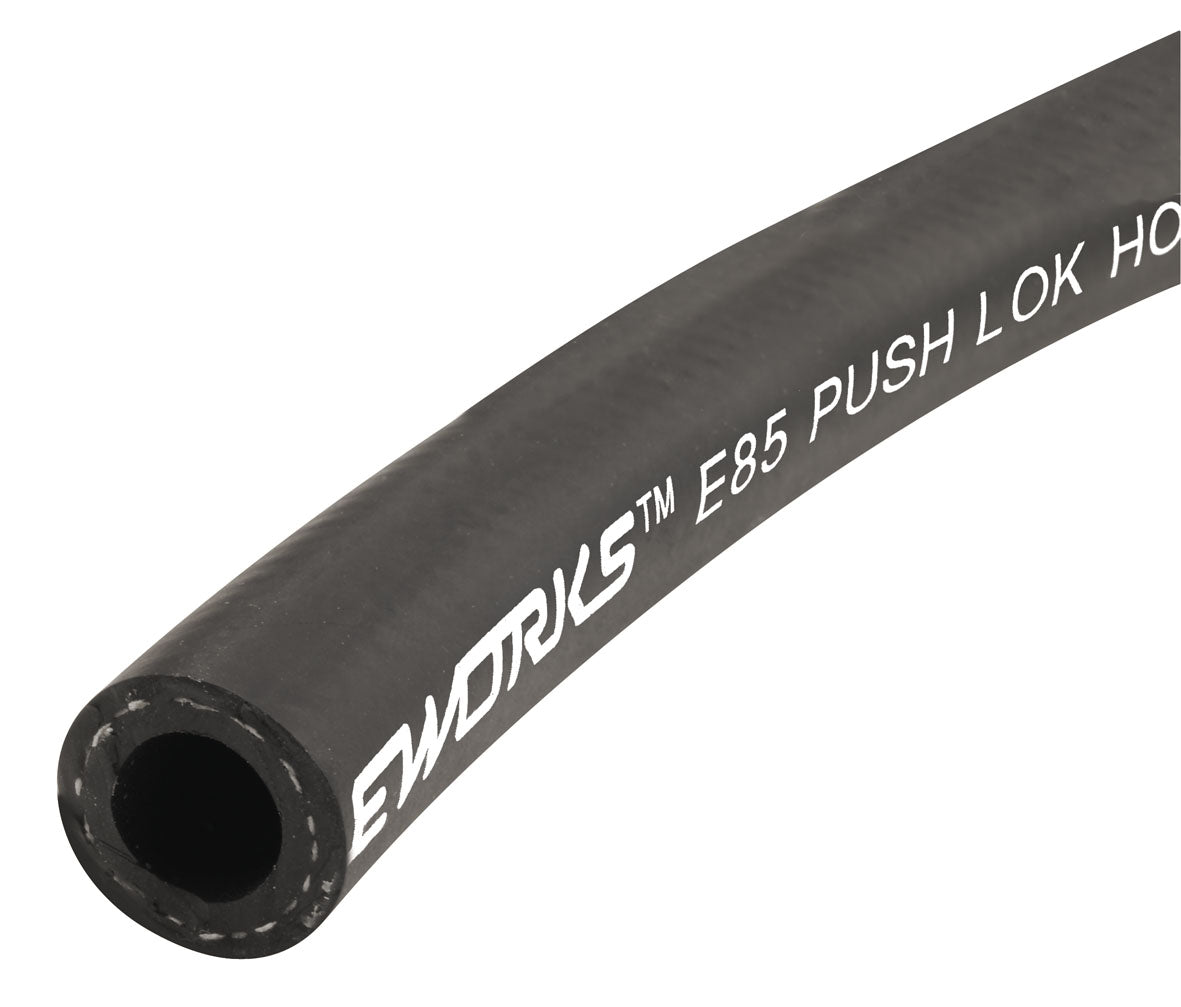

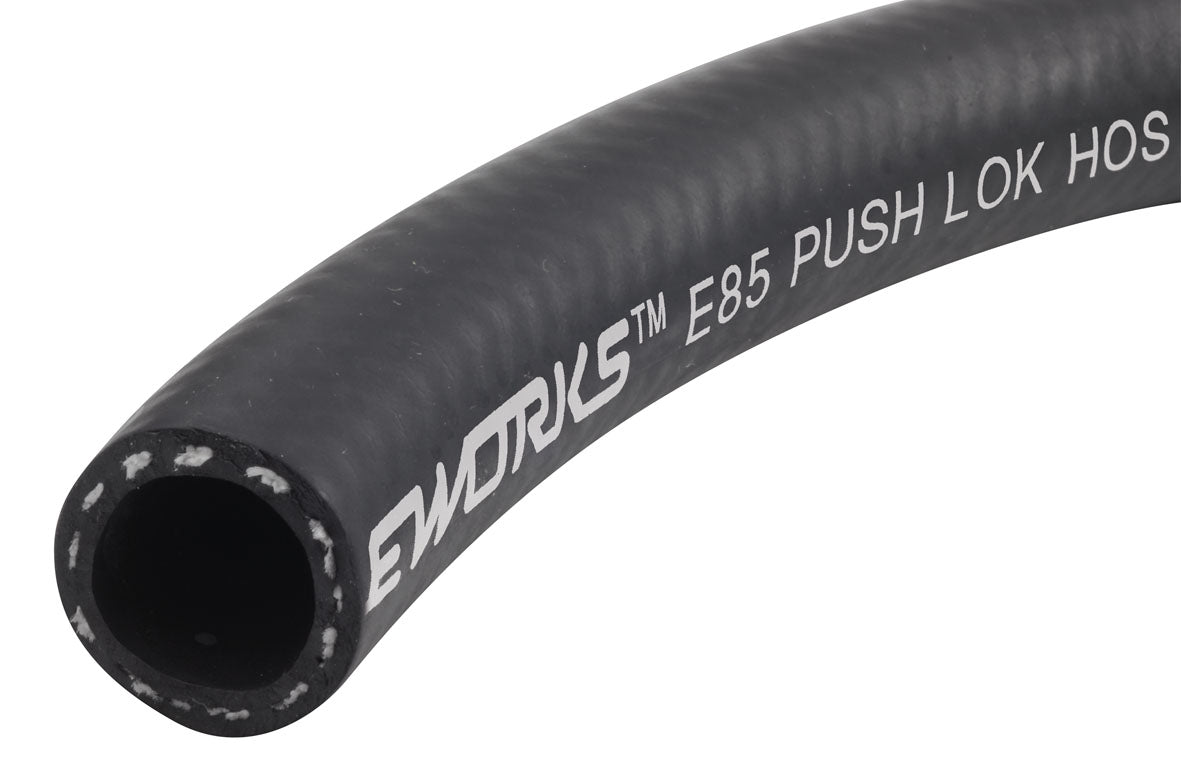

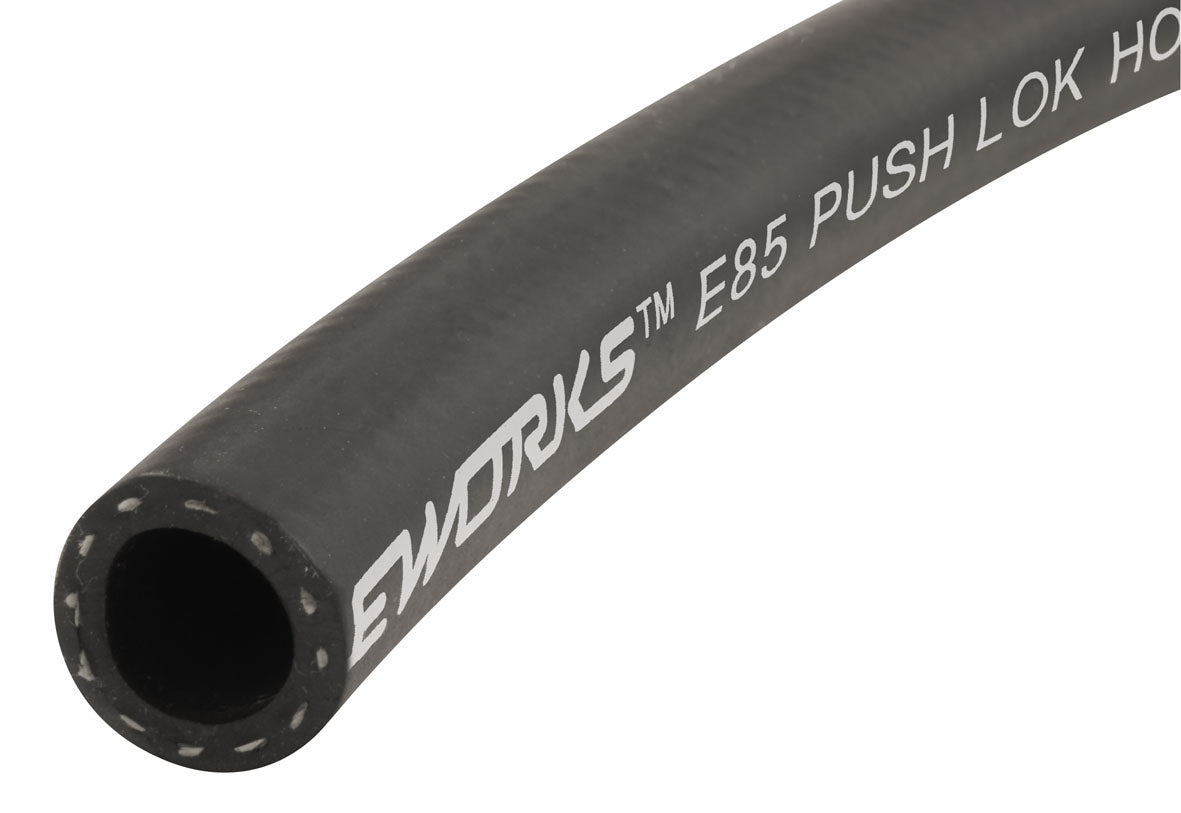

400 SERIES PUSH LOCK RUBBER HOSE
Raceworks 400 Series Rubber Hose has an inner liner of Nitrile which is reinforced with braid made from high tensile synthetic textile cord to give it extra strength. Raceworks 400 Series rubber hose is safe for use with E85, methanol, oils, lubricants and coolant. Recommended for use on low pressure systems/temperature applications. If using in high pressure or temperature above 70°C we recommend securing hose ends with a clamp. All Raceworks products come with a 2 year warranty.
Hose is not submersible.
Temperature Range: -40°C to 100°C. Ethanol & Methanol Safe.
Extra Long Lengths now available. Please ask your Raceworks Reseller for lengths longer than 30M.
Hose clamps and crimping pliers available.
For High temp applications, we recommend the use of our Fibreglass Heat Sleeving
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-4 | 250psi | 750psi | 1/4″ | 6.4mm | 29/64″ | 11.6mm | 99g | 1.18″ | 30mm |
| AN-5 | 250psi | 750psi | 5/16″ | 7.9mm | 9/16″ | 14.2mm | 140g | 1.38″ | 35mm |
| AN-6 | 250psi | 750psi | 3/8″ | 9.5mm | 5/8″ | 15.8mm | 175g | 1.58″ | 40mm |
| AN-8 | 250psi | 750psi | 1/2″ | 12.7mm | 3/4″ | 19.1mm | 237g | 2.17″ | 55mm |
| AN-10 | 250psi | 750psi | 5/8″ | 15.8mm | 15/16″ | 22.9mm | 296g | 2.44″ | 62mm |
| AN-12 | 250psi | 750psi | 3/4″ | 19.1mm | 1-1/32″ | 26.2mm | 353g | 3.54″ | 90mm |
