Raceworks

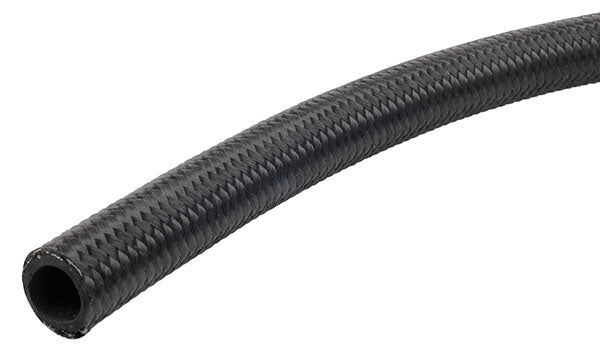

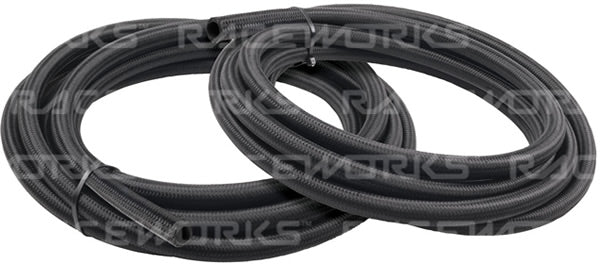

120 SERIES BLACK NYLON BRAID OVER RUBBER HOSE
Size:-6
Length:10M
Quantity:
Raceworks 120 Series Black Nylon Braided Hose is lighter than traditional stainless steel braided hose. It is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a light weight black nylon outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.
Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-6 | 500psi | 2000psi | 11/32” | 8.7mm | 9/16″ | 13.8mm | 157g | 1.30″ | 33mm |
| AN-8 | 500psi | 2000psi | 7/16” | 11.1mm | 5/8” | 15.7mm | 198g | 1.69″ | 43mm |
| AN-10 | 500psi | 2000psi | 9/16” | 14.2mm | 13/16″ | 20.8mm | 275g | 2.09″ | 53mm |
| AN-12 | 500psi | 2000psi | 11/16” | 17.4mm | 15/16″ | 23.9mm | 324g | 2.36″ | 60mm |
| AN-16 | 350psi | 1400psi | 7/8″ | 22.2mm | 13/64″ | 30.5mm | 414g | 4.13″ | 105mm |
| AN-20 | 350psi | 1400psi | 1-1/8″ | 28.5mm | 1-13/32″ | 35.8mm | 567g | 4.33″ | 110mm |
