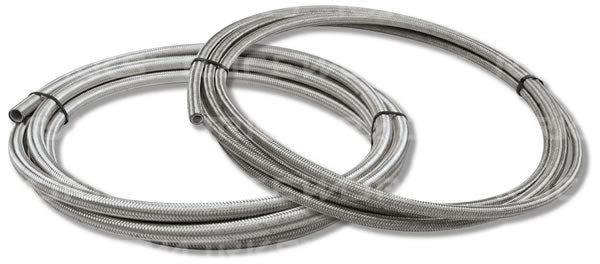

100 SERIES STAINLESS BRAID OVER RUBBER HOSE
Size:-4
Length:10M
Quantity:

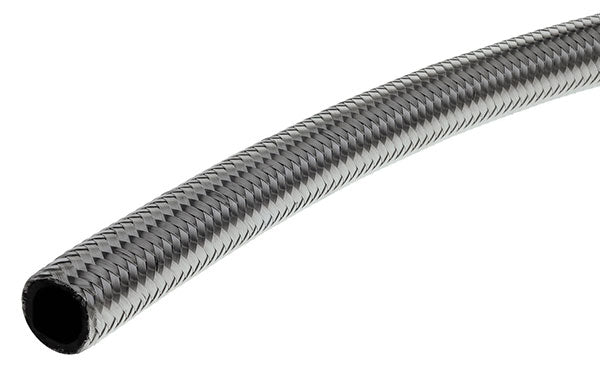

Raceworks 100 Series Stainless Steel Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a stainless steel double outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.
Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-4 | 1000psi | 6000psi | 7/32” | 5.5mm | 7/16″ | 11.1mm | 151g | 1.00″ | 25mm |
| AN-6 | 1000psi | 6000psi | 11/32” | 8.7mm | 9/16″ | 13.8mm | 196g | 1.30″ | 33mm |
| AN-8 | 1000psi | 5000psi | 7/16” | 11.1mm | 5/8” | 15.7mm | 253g | 1.69″ | 43mm |
| AN-10 | 1000psi | 5000psi | 9/16” | 14.2mm | 13/16″ | 20.8mm | 365g | 2.09″ | 53mm |
| AN-12 | 1000psi | 3750psi | 11/16” | 17.4mm | 15/16″ | 23.9mm | 471g | 2.36″ | 60mm |
| AN-16 | 750psi | 2500psi | 7/8″ | 22.2mm | 13/64″ | 30.5mm | 567g | 4.13″ | 105mm |
| AN-20 | 500psi | 2000psi | 1-1/8″ | 28.5mm | 1-13/32″ | 35.8mm | 850g | 6.30″ | 160mm |
